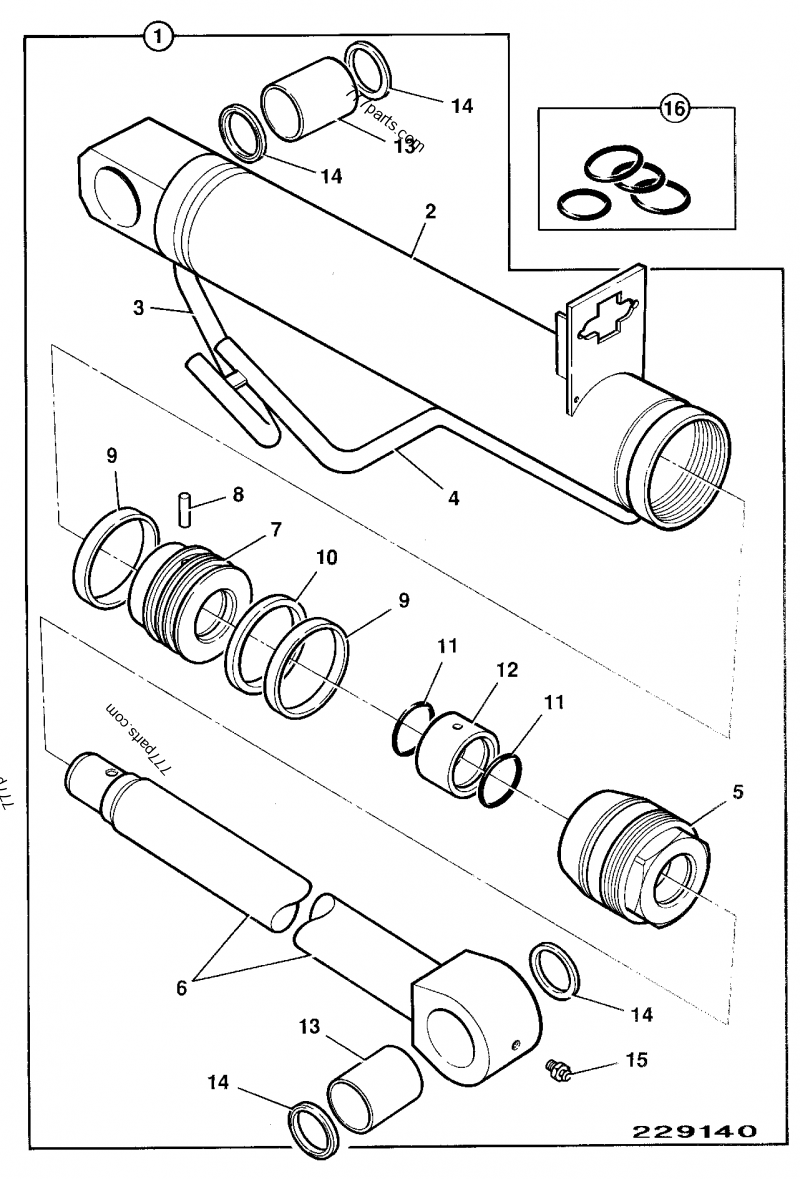

JCB 426e RAMS
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 56*****15 | Ram, tilt, Z Bar; Replaced by 998/10602.MSS to 332/S9557 + 813/00414 (x2) SAN100189, See SAN 13447. D.Jackson 04/11/08 (change to Dongyang rams) | 1 |
| 1 | 56*****15 | Ram, tilt, Z Bar; Replaced by 998/10602.MSS to 332/S9557 + 813/00414 (x2) SAN100189, See SAN 13447. D.Jackson 04/11/08 (change to Dongyang rams) | 1 |
| 2 | 56*****13 | Cylinder, assembly; MSS to 332/S9557 + 813/00414 (x2) SAN100189, D.Jackson 04/11/08 ( Change to Dongyang rams ) | 1 |
| 2 | 56*****13 | Cylinder, assembly; MSS to 332/S9557 + 813/00414 (x2) SAN100189, D.Jackson 04/11/08 ( Change to Dongyang rams ) | 1 |
| 3 | 66*****23 | Pipe | 1 |
| 3 | 66*****23 | Pipe | 1 |
| 4 | 56*****04 | Pipe | 1 |
| 4 | 56*****04 | Pipe | 1 |
| 5 | 59*****37 | Kit-end cap, 70mm rod x 130mm cyl; Superseded to 594/14036 on SAN100177 D.Jackson 28/10/08, Agreed by an Shrive HBU via Ian Clarke | 1 |
| 5 | 59*****37 | Kit-end cap, 70mm rod x 130mm cyl; Superseded to 594/14036 on SAN100177 D.Jackson 28/10/08, Agreed by an Shrive HBU via Ian Clarke | 1 |
| 6 | 59*****70 | Rod, piston | 1 |
| 6 | 59*****70 | Rod, piston | 1 |
| 7 | 59*****13 | Head, piston | 1 |
| 7 | 59*****13 | Head, piston | 1 |
| 8 | 82*****59 | Dowel | 1 |
| 8 | 82*****59 | Dowel | 1 |
| 9 | 24*****22 | Ring, wear | 2 |
| 9 | 24*****22 | Ring, wear | 2 |
| 10 | 24*****43 | Seal, piston head | 1 |
| 10 | 24*****43 | Seal, piston head | 1 |
| 11 | 23*****08 | O Ring | 2 |
| 11 | 23*****08 | O Ring | 2 |
| 12 | 82*****32 | Spacer | 1 |
| 12 | 82*****32 | Spacer | 1 |
| 13 | 80*****40 | Bearing, liner, 75x85 | 2 |
| 13 | 80*****40 | Bearing, liner, 75x85 | 2 |
| 14 | 81*****15 | Seal, pivot pin | 4 |
| 14 | 81*****15 | Seal, pivot pin | 4 |
| 15 | 14*****01 | Nipple, grease, straight, 1/8 BSP | 1 |
| 15 | 14*****01 | Nipple, grease, straight, 1/8 BSP | 1 |
| 16 | 99*****20 | Kit-seal, 70mm rod x 130mm cyl | 1 |
| 16 | 99*****20 | Kit-seal, 70mm rod x 130mm cyl | 1 |
