CAB | TLT 30D | AGRICULTURAL | JCB

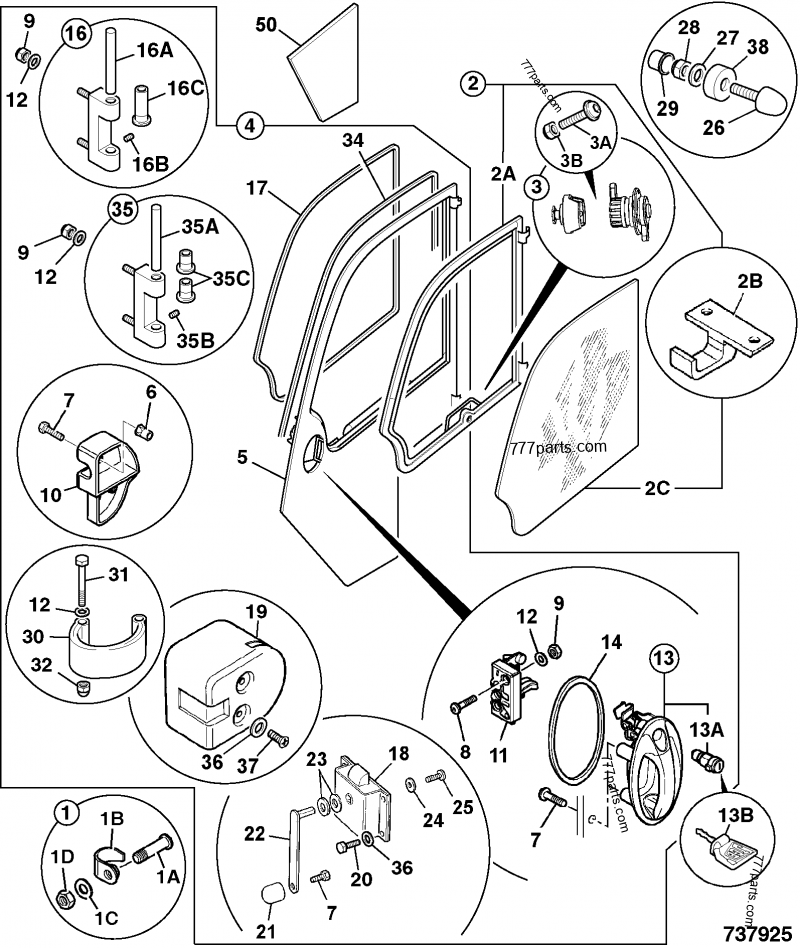

JCB TLT 30D CAB

#	Part No.	Description	Qty
0	82*****05	Glass, door	1
0	82*****10	Washer, plain	1
0	33*****86	Screw, grub; Superseded by 331/31247 assy - see SAN 25804, DAR 09/05/08	1
0	33*****51	Bolt, door striker	1
0	82*****47	Nut, plain,M12	1
0	33*****81	Pin, hinge; Superseded by 331/31247 assy - see SAN 25804, DAR 09/05/08	1
0	33*****81	Pin, hinge; Superseded by 331/31247 assy - see SAN 25804, DAR 09/05/08	1
0	33*****85	Bush, nylon; Superseded by 331/31247 assy - see SAN 25804, DAR 09/05/08	1
0	33*****72	Frame, window(door), standard	1
0	33*****49	Bush, nylon,short(22.5mm)	2
0	82*****88	Screw, button head, M5 x 12	2
0	47*****00	Catch, security	1
0	33*****90	Key, cab door; Superseded by 701/45501 See SAN 21526 As requ, ested by purchasing	2
0	13******3D	Nut, lock M5	3
0	33*****86	Screw, grub; Superseded by 331/31247 assy - see SAN 25804, DAR 09/05/08	1
0	82*****06	Screw, socket flange head, M5 x 20	3
0	NSP	None serviced part	1
0	33*****91	Guard, striker	1
0	82*****05	Glass, door	1
0	82*****10	Washer, plain	1
0	33*****86	Screw, grub; Superseded by 331/31247 assy - see SAN 25804, DAR 09/05/08	1
0	33*****51	Bolt, door striker	1
0	82*****47	Nut, plain,M12	1
0	33*****81	Pin, hinge; Superseded by 331/31247 assy - see SAN 25804, DAR 09/05/08	1
0	33*****81	Pin, hinge; Superseded by 331/31247 assy - see SAN 25804, DAR 09/05/08	1
0	33*****85	Bush, nylon; Superseded by 331/31247 assy - see SAN 25804, DAR 09/05/08	1
0	33*****72	Frame, window(door), standard	1
0	33*****49	Bush, nylon,short(22.5mm)	2
0	82*****88	Screw, button head, M5 x 12	2
0	47*****00	Catch, security	1
0	33*****90	Key, cab door; Superseded by 701/45501 See SAN 21526 As requ, ested by purchasing	2
0	13******3D	Nut, lock M5	3
0	33*****86	Screw, grub; Superseded by 331/31247 assy - see SAN 25804, DAR 09/05/08	1
0	82*****06	Screw, socket flange head, M5 x 20	3
0	NSP	None serviced part	1
0	33*****91	Guard, striker	1
1	12*****69	Bolt, striker assembly, cab door lock	1
1	12*****69	Bolt, striker assembly, cab door lock	1
2	29*****77	Window, assembly, frame and glass	1
2	29*****77	Window, assembly, frame and glass	1
3	33*****50	Retainer, Door Latch Back; SAN 20670.Superseded to 331/34503.PI L04/020, P GAMBLE.16/08/04	1
3	33*****50	Retainer, Door Latch Back; SAN 20670.Superseded to 331/34503.PI L04/020, P GAMBLE.16/08/04	1
4	29*****44	Door, assembly,standard	1
4	29*****44	Door, assembly,standard	1
5	33*****69	Door, welded assembly, standard	1
5	33*****69	Door, welded assembly, standard	1
6	82*****79	Nut, M6	1
6	82*****79	Nut, M6	1
7	82*****59	Screw, button head socket, M6 x 16mm	6
7	82*****59	Screw, button head socket, M6 x 16mm	6
8	82*****81	Screw, socket, M8 x 40mm	2
8	82*****81	Screw, socket, M8 x 40mm	2
9	13******3D	Nut, self lock M8	8
9	13******3D	Nut, self lock M8	8
10	33*****92	Cover, door lock	1
10	33*****92	Cover, door lock	1
11	82*****49	Latch, LH internal	1
11	82*****49	Latch, LH internal	1
12	14******7D	Washer, M8 plain	12
12	14******7D	Washer, M8 plain	12
13	33*****15	Handle, Door, (LH); Superseded by 332/A3729 on SAN26366 D.Jackson 05/09/08 ( Identical part advised by Happich via Andy Weir), EXCEPT LANDPOWER CAB IT IS RIGHT HAND	1
13	33*****15	Handle, Door, (LH); Superseded by 332/A3729 on SAN26366 D.Jackson 05/09/08 ( Identical part advised by Happich via Andy Weir), EXCEPT LANDPOWER CAB IT IS RIGHT HAND	1
14	33*****05	Gasket, door handle	1
14	33*****05	Gasket, door handle	1
16	33*****47	Hinge, block, assembly	2
16	33*****47	Hinge, block, assembly	2
17	33*****21	Seal, door glass, standard	1
17	33*****21	Seal, door glass, standard	1
18	82*****83	Lock, slam	1
18	82*****83	Lock, slam	1
19	33*****93	Cover, window lock	1
19	33*****93	Cover, window lock	1
20	82*****06	Screw, socket flange head, M5 x 20	4
20	82*****06	Screw, socket flange head, M5 x 20	4
21	15*****04	Knob	1
21	15*****04	Knob	1
22	15*****00	Lever, slam lock	1
22	15*****00	Lever, slam lock	1
23	14******9D	Washer, M12	2
23	14******9D	Washer, M12	2
24	14******1D	Washer, plain 2BA	1
24	14******1D	Washer, plain 2BA	1
25	82*****45	Screw; Supply 826/00214	1
25	82*****45	Screw; Supply 826/00214	1
26	16*****42	Stop, Bump	1
26	16*****42	Stop, Bump	1
27	14******6D	Washer, M6 plain	1
27	14******6D	Washer, M6 plain	1
28	13******3D	Nut, M6 lock	1
28	13******3D	Nut, M6 lock	1
29	83*****74	Cap	1
29	83*****74	Cap	1
30	33*****45	Strap, Check	1
30	33*****45	Strap, Check	1
31	13******6D	Bolt, M8x70	2
31	13******6D	Bolt, M8x70	2
32	82*****89	Nut, cap	2
32	82*****89	Nut, cap	2
34	33*****20	Seal, door	1
34	33*****20	Seal, door	1
35	33*****94	Hinge, block,assembly	1
35	33*****94	Hinge, block,assembly	1
36	14******1D	Washer, plain 2BA	6
36	14******1D	Washer, plain 2BA	6
37	82*****88	Screw, button head, M5 x 12	2
37	82*****88	Screw, button head, M5 x 12	2
38	82*****42	Boss, M10,Black	1
38	82*****42	Boss, M10,Black	1
50	29*****10	soundproofing, door panel	1
50	29*****10	soundproofing, door panel	1
