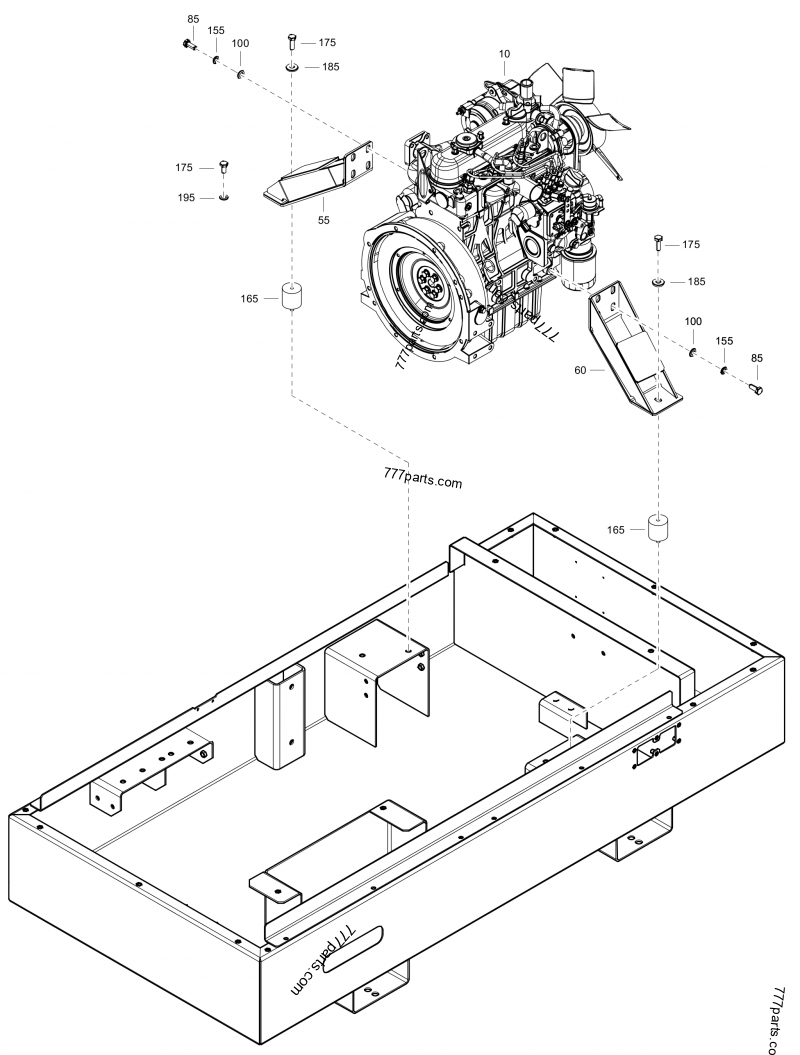

ATLAS COPCO QES 9 Engine and accessories
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 16******07 | Engine - D1105 | 1 |
| 1 | 16******07 | Engine - D1105 | 1 |
| 2 | 16******93 | Left support engine | 1 |
| 2 | 16******93 | Left support engine | 1 |
| 3 | 16******94 | Right support engine | 1 |
| 3 | 16******94 | Right support engine | 1 |
| 4 | 01******03 | Screw | 8 |
| 4 | 01******03 | Screw | 8 |
| 5 | 03******00 | Washer-flat:M 10.5/22.0x2.0t | 8 |
| 5 | 03******00 | Washer-flat:M 10.5/22.0x2.0t | 8 |
| 6 | 03******00 | Spring washer | 8 |
| 6 | 03******00 | Spring washer | 8 |
| 7 | 16******81 | Diabolo shock | 2 |
| 7 | 16******81 | Diabolo shock | 2 |
| 8 | 01******03 | Screw:M10x 20;hex hd,zn plt,$s | 2 |
| 8 | 01******03 | Screw:M10x 20;hex hd,zn plt,$s | 2 |
| 9 | 03******00 | Spring washer | 2 |
| 9 | 03******00 | Spring washer | 2 |
| 10 | 03******00 | Washer-flat:M 10.5/22.0x2.0t | 2 |
| 10 | 03******00 | Washer-flat:M 10.5/22.0x2.0t | 2 |
