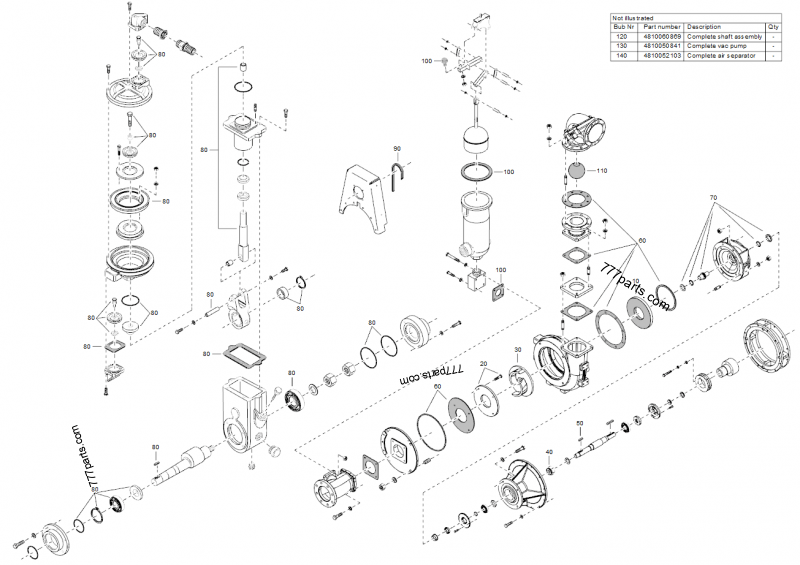

ATLAS COPCO PAS 100 Pump parts
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 48******94 | Wear part kit | 1 |
| 2 | 48******25 | Wear plate set (rear) | 1 |
| 3 | 48******11 | Wear plate set (front) | 1 |
| 4 | 48******98 | Wear plate set (front) | 1 |
| 5 | 48******74 | Impeller | 1 |
| 6 | 48******66 | Impeller nut M30X2-5H UNI 7474 | 1 |
| 7 | 48******26 | Shaft key 10X8X40 DIN 6885A | 1 |
| 8 | 48******56 | Seal kit | 1 |
| 9 | 48******04 | Set of gaskets | 1 |
| 10 | 48******06 | Mechanical seal assembly | 1 |
| 11 | 48******24 | Repair kit diaphragm pump | 1 |
| 12 | 48******33 | Vacuum pump belt | 1 |
| 13 | 48******63 | Seperator gasket kit | 1 |
| 14 | 48******68 | Check valve rubber ball | 1 |
| 15 | 48******69 | Complete shaft assembly | 1 |
| 16 | 48******41 | Diaphragm vacuum pump | 1 |
| 17 | 48******03 | Separator | 1 |
