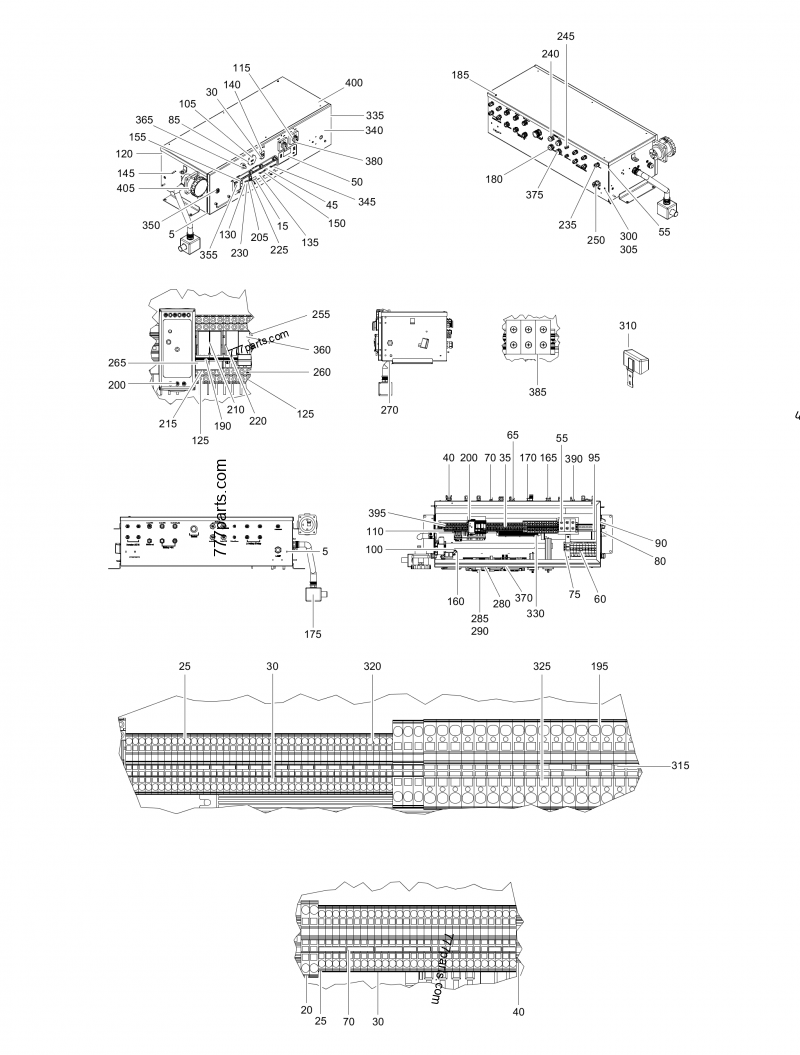

ATLAS COPCO HiLight S2+ Cubicle assembly
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 10******02 | S2+ box | 1 |
| 2 | 10******16 | Breaker | 1 |
| 3 | 10******79 | Terminal | 1 |
| 4 | 10******03 | Terminal | 66 |
| 5 | 10******83 | Connector | 20 |
| 6 | 10******00 | Alternator | 2 |
| 7 | 10******82 | Terminal end bracket S. Z | 1 |
| 8 | 10******35 | S202-C32 abb | 1 |
| 9 | 10******00 | Control module | 1 |
| 10 | 10******00 | Wire guide | 3 |
| 11 | 10******00 | Plate | 4 |
| 12 | 10******07 | Circuit break | 5 |
| 13 | 10******85 | Connector | 3 |
| 14 | 10******04 | Circuit break | 4 |
| 15 | 10******00 | Wire guide | 2 |
| 16 | 10******00 | Decal | 1 |
| 17 | 06******30 | Locknut | 3 |
| 18 | 06******62 | Nut | 1 |
| 19 | 02******03 | Screw | 4 |
| 20 | 10******17 | Hour meter | 9 |
| 21 | 10******00 | Plate | 1 |
| 22 | 10******10 | Switch limit | 1 |
| 23 | 10******00 | Cubicle roof | 1 |
| 24 | 10******19 | Socket | 1 |
| 25 | 10******69 | Relay | 4 |
| 26 | 10******69 | Relay | 1 |
| 27 | 10******64 | Button push | 1 |
| 28 | 10******00 | MpeT3-10R | 1 |
| 29 | 10******60 | S2C-A2 ABB shunt coil | 1 |
| 30 | 10******20 | Fuse | 1 |
| 31 | 10******17 | Isolator | 1 |
| 32 | 01******03 | Screw:M 4x 10;hex hd zn plt $s | 1 |
| 33 | 03******00 | Plain washer D4*9 FZB | 1 |
| 34 | 10******28 | Holder | 2 |
| 35 | 10******33 | Contactor | 10 |
| 36 | 01******03 | Screw:M 6x 12;hex hd,zn plt,$s | 2 |
| 37 | 10******20 | Clip | 4 |
| 38 | 10******15 | Terminal | 13 |
| 39 | 10******96 | Power supply | 1 |
| 40 | 10******16 | S9,48VDC ABB shunt coil | 1 |
| 41 | 10******44 | CR-P048DC2 ABB relay | 2 |
| 42 | 10******21 | Relay AUX. | 3 |
| 43 | 10******29 | Relay AUX. | 1 |
| 44 | 10******94 | Breaker | 1 |
| 45 | 10******27 | Circuit break. | 1 |
| 46 | 10******02 | Battery charg | 1 |
| 47 | 06******63 | Connector | 4 |
| 48 | 06******80 | Connector | 2 |
| 49 | 06******59 | Connector | 1 |
| 50 | 10******30 | Relay | 1 |
| 51 | 10******01 | Receptacle | 2 |
| 52 | 10******43 | Relay overload | 2 |
| 53 | 02******86 | Blind rivet nut | 2 |
| 54 | 10******00 | Fuse socket | 2 |
| 55 | 10******12 | Fuse - | 1 |
| 56 | 10******17 | Fuse - | 1 |
| 57 | 06******02 | Polyamide plug | 4 |
| 58 | 06******98 | Plug socket | 2 |
| 59 | 10******70 | Light sensor | 1 |
| 60 | 10******26 | Terminal | 2 |
| 61 | 10******59 | Terminal | 2 |
| 62 | 10******43 | Plug-in bridge | 2 |
| 63 | 10******04 | Driver led | 1 |
| 64 | 12******00 | Hinge | 2 |
| 65 | 10******00 | Cubicle body | 1 |
| 66 | 10******72 | Circuit breaker | 1 |
| 67 | 10******00 | Door lock | 1 |
| 68 | 10******05 | Relay time | 1 |
| 69 | 10******11 | Relay AUX. | 1 |
| 70 | 10******00 | Dimming button | 1 |
| 71 | 10******96 | Socket | 1 |
| 72 | 10******93 | Contactor | 1 |
| 73 | 10******12 | Lw39-25-9GS-404/4 APT switch | 1 |
| 74 | 10******11 | 3ph terminal | 3 |
| 75 | 10******49 | Breaker | 1 |
| 76 | 10******17 | Circuit breaker | 1 |
| 77 | 10******30 | Box | 1 |
| 78 | 10******95 | Socket | 1 |
