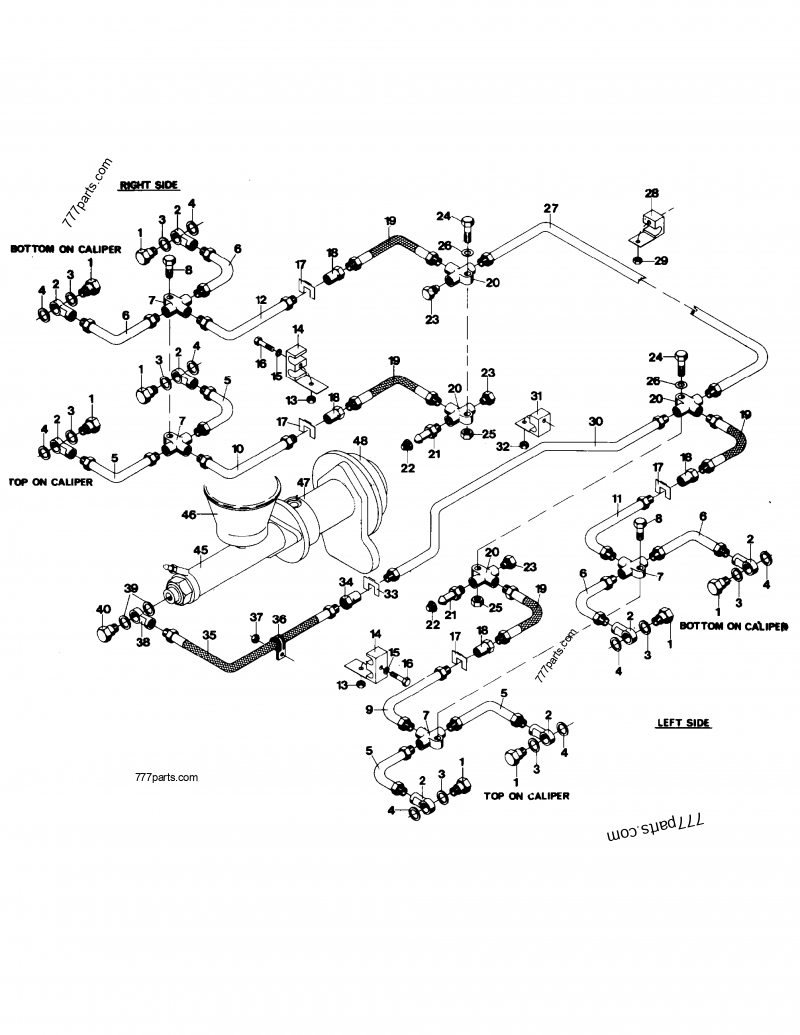

DOOSAN MT30S BRAKES; FRONT VEHICLE
| # | Part No. | Description | Qty |
|---|---|---|---|
| 0 | MX****07 | PIPE, L.H. | 1 |
| 0 | MX****08 | PIPE, R.H. | 1 |
| 0 | MX****09 | PIPE, L.H. | 1 |
| 0 | MX****10 | PIPE, R.H. | 1 |
| 0 | MX****69 | BOLT; Welded | 3 |
| 0 | MX****69 | BOLT; Welded | 4 |
| 0 | MX****69 | BOLT; Welded | 1 |
| 1 | MX****18 | SCREW | 8 |
| 2 | MX****36 | HOUSING | 8 |
| 3 | MX****32 | WASHER | 8 |
| 4 | MX****28 | RING; Top on caliper | 8 |
| 5 | MX****72 | PIPE; Bottom on caliper | 4 |
| 6 | MX****73 | PIPE; Bottom on caliper | 4 |
| 7 | MX****29 | COUPLING | 4 |
| 8 | MX****54 | SCREW | 2 |
| 9 | MX****68 | PIPE, R.H. | 1 |
| 10 | MX****68 | PIPE, R.H. | 1 |
| 11 | MX****70 | PIPE, L.H. | 1 |
| 12 | MX****70 | PIPE, L.H. | 1 |
| 13 | MX****36 | NUT; M6 | 4 |
| 14 | MX****84 | CLAMP | 4 |
| 15 | MX****44 | WASHER; 6.4x12x1.5 | 4 |
| 16 | MX****64 | SCREW | 4 |
| 17 | MX****27 | CLAMP | 4 |
| 18 | MX****26 | SPACER | 4 |
| 19 | MX****25 | HOSE | 4 |
| 20 | MX****29 | COUPLING | 4 |
| 21 | MX****28 | PLUG | 2 |
| 22 | MX****20 | CAP | 2 |
| 23 | MX****33 | PLUG | 3 |
| 24 | MX****56 | SCREW | 2 |
| 25 | MX****38 | NUT | 2 |
| 26 | MX****46 | WASHER | 2 |
| 27 | MX****41 | PIPE | 1 |
| 28 | MX****85 | CLAMP | 3 |
| 29 | MX****36 | NUT; M6 | 3 |
| 30 | MX****74 | PIPE | 1 |
| 31 | MX****85 | CLAMP | 4 |
| 32 | MX****36 | NUT; M6 | 4 |
| 33 | MX****27 | CLAMP | 1 |
| 34 | MX****26 | SPACER | 1 |
| 35 | MX****25 | HOSE | 1 |
| 36 | MX****04 | CLAMP | 1 |
| 37 | MX****36 | NUT; M6 | 1 |
| 38 | MX****36 | HOUSING | 1 |
| 39 | MX****32 | WASHER | 2 |
| 40 | MX****30 | SCREW | 1 |
| 45 | *N****00 | *MASTERCYLINDER, ASS; 33.04 | 1 |
| 46 | *N****01 | *BRAKE FLUID RESEVOIR; 33.04 | 1 |
| 47 | *N****92 | *BRACKET; 33.04 | 1 |
| 48 | *N****02 | *DIAPHRAGM, ASS; 49.06 | 1 |
