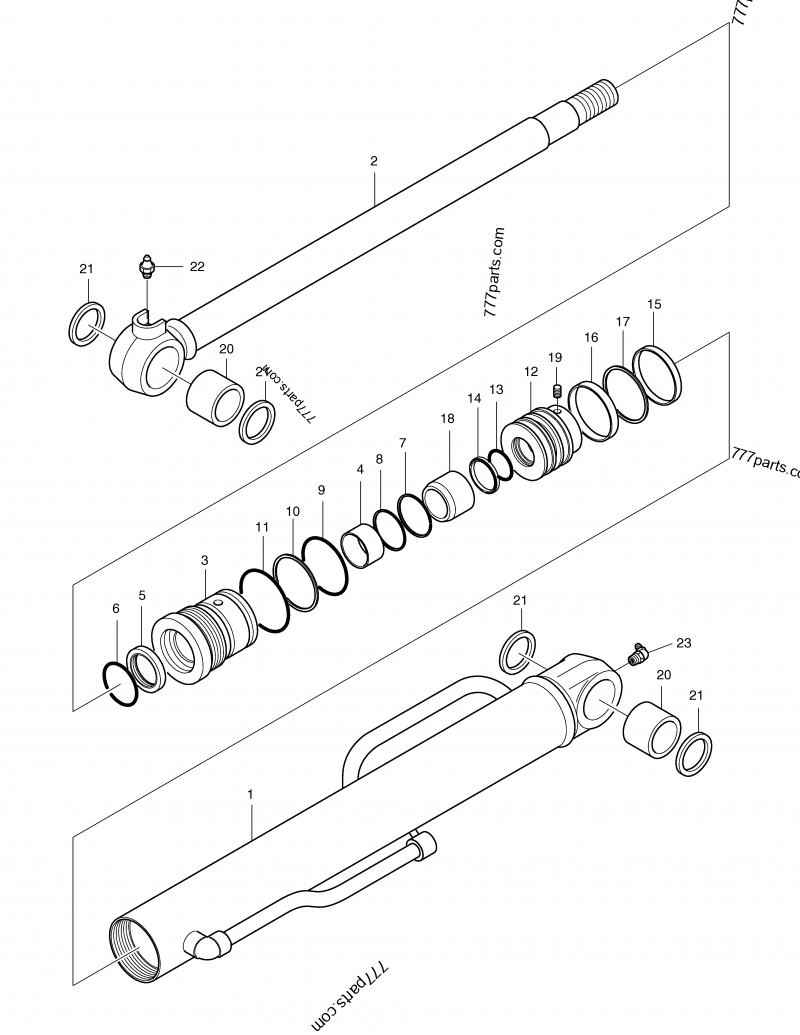

DOOSAN SOLAR+030+PLUS_2 ARM CYLINDER
| # | Part No. | Description | Qty |
|---|---|---|---|
| 0 | 24******8C | ARM CYL. ASS'Y | 1 |
| 0 | 24********KT | SEAL KIT, BOOM CYL. | 1 |
| 1 | 41*********51 | TUBE ASS'Y | 1 |
| 2 | 45*********11 | PISTON ROD ASS'Y | 1 |
| 3 | 48*********10 | ROD COVER | 1 |
| 4 | 63*********70 | DU-BUSH(MB4025DU) | 1 |
| 5 | 61*********00 | WIPPER, DUST | 1 |
| 6 | 66*********20 | STOPPER | 1 |
| 7 | 61*********00 | U-PACKING | 1 |
| 8 | 61*********00 | RING, BACK UP | 1 |
| 9 | 61*********50 | O-RING 1BG-65 | 2 |
| 10 | 61*********50 | RING, BACK UP | 2 |
| 11 | 61*********00 | O-RING 1BG-70 | 1 |
| 12 | 47*********30 | PISTON | 1 |
| 13 | 61*********50 | O-RING 1BP-35 | 1 |
| 14 | 61*********50 | RING, BACK UP | 1 |
| 15 | 61*********0A | RING, WEAR | 1 |
| 16 | 61*********00 | RING, DUST | 1 |
| 17 | 61*********00 | SEAL, SLIPPER | 1 |
| 18 | 47*********00 | RING, CUSHION | 1 |
| 19 | 62*********60 | SCREW, SET | 1 |
| 20 | 63*********00 | BUSHING | 2 |
| 21 | 61*********50 | PIN, WIPPER | 4 |
| 22 | 63*********70 | NIPPLE, GREASE | 1 |
| 23 | 63*********70 | NIPPLE, GREASE | 1 |
