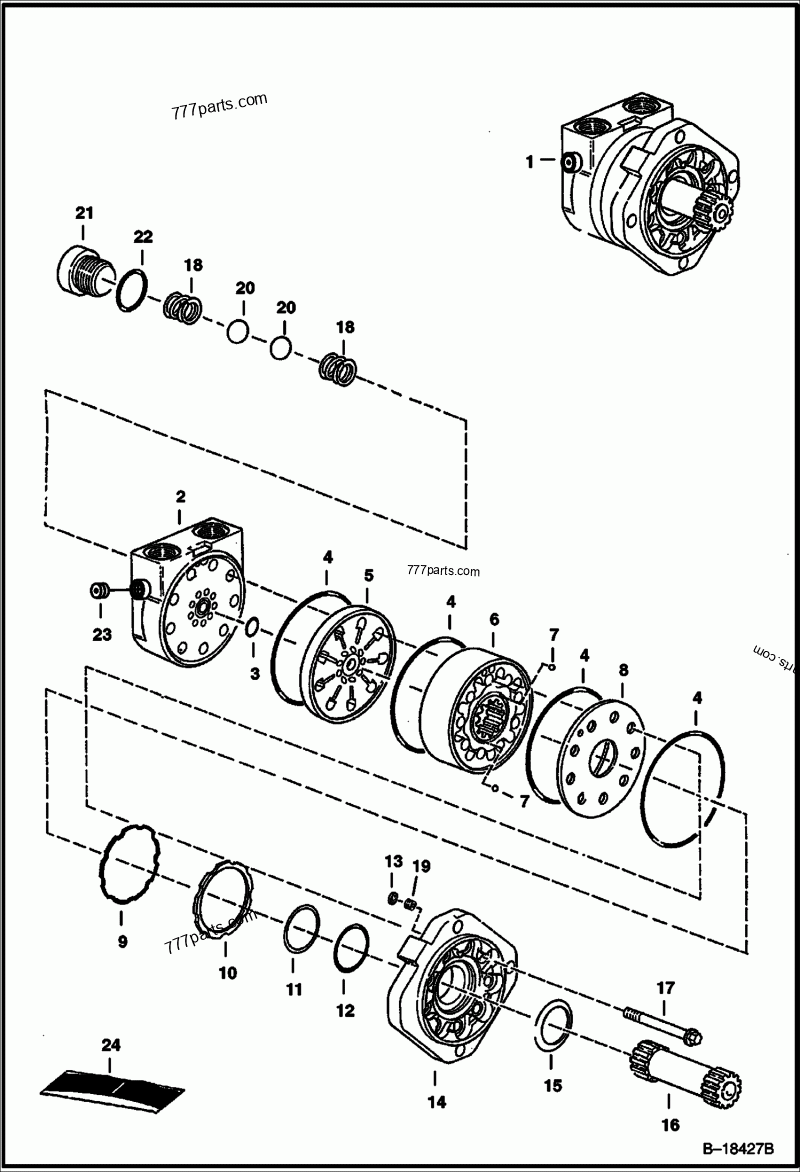

BOBCAT Trencher Trencher (LT313) (Hydraulic Motor) (S/N 045400101 & Above)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 66***84 | MOTOR; NLA - Eaton 161-0061-002 - Order 7116831 motor - Was 6675784 | 1 |
| 2 | 66***42 | HOUSING; NLA - Was 6669442 | 1 |
| 3 | 66***52 | O-RING | 1 |
| 4 | 66***46 | O-RING; square cut - Was 6673700 | 4 |
| 5 | 66***47 | PLATE; valve | 1 |
| 6 | 66***01 | GEROLER; NLA - Order 7116831 - Was 6673701 | 1 |
| 7 | 66***42 | BALL STEEL | 1 |
| 8 | 66***48 | PLATE; Was 6669448 | 1 |
| 9 | 66***54 | RING, BACK-UP; backup | 1 |
| 10 | 66***53 | SEAL | 1 |
| 11 | 66***50 | RING, BACK-UP; backup | 1 |
| 12 | 66***49 | O-RING | 1 |
| 13 | 68***04 | SCREEN; Was 6673705 | 1 |
| 14 | 66***02 | FLANGE; NLA - mounting - Was 6673702 | 1 |
| 15 | 66***15 | SEAL, OIL | 1 |
| 16 | 66***03 | SHAFT; drive | 1 |
| 17 | 66***04 | BOLT | 9 |
| 18 | 65***33 | SPRING | 2 |
| 19 | 68***05 | PLUG, MOTOR; NLA - orifice - Was 6850005 | 1 |
| 20 | 66***28 | BALL STEEL | 2 |
| 21 | 66***89 | PLUG, MOTOR; W/ Ref. 22 | 1 |
| 22 | 79K6 | O RING 10 | 1 |
| 23 | 90K4 | PLUG; Was 90KN00004B | 1 |
| 24 | 66***55 | KIT SEAL; Ref. 3, 4, 9-12, 15 & 22 | 1 |
