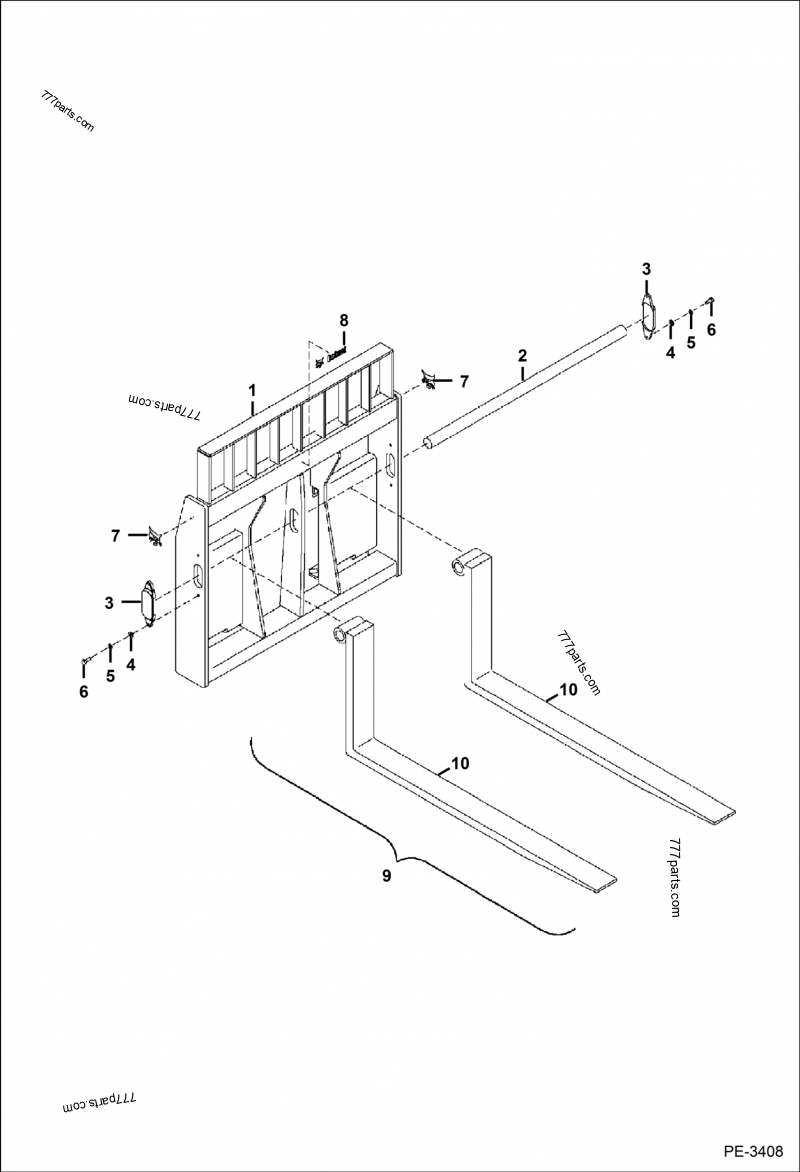

BOBCAT Pallet+Fork 48" Pallet Fork (Floating Frame - For V417)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 71***17 | FRAME; SALES #7140717 - less forks | 1 |
| 2 | 66***48 | BAR; 49.5" (1257,3 mm) long | 1 |
| 3 | 66***74 | RETAINER ASSY | 2 |
| 4 | 27E8 | WASHER 10; flat | 4 |
| 5 | 4E8 | WASHER; lock | 4 |
| 6 | 17**20 | BOLT 5 | 4 |
| 7 | 68***28 | DECAL LOGO BOBCAT | 2 |
| 8 | 71***73 | DECAL LOGO BOBCAT | 1 |
| 9 | 68***02 | FORK SET; SALES - 48" low back - set of (2) 6677808 forks - Sales #6810302 | 1 |
| 9 | 71***06 | FORK SET; NLA - brick/block ITA - set of (2) 7144249 forks - Was Sales #7145006 | 1 |
| 9 | 71***05 | FORK SET; SALES - brick/block V/H - set of (2) 7141767 forks - Sales #7145005 | 1 |
| 9 | 71***63 | FORK SET; SALES - 60" low back - set of (2) 6686876 forks - Sales# 7107163 | 1 |
| 9 | 68***01 | FORK SET; SALES - 48" high back - set of (2) 6677809 forks - Sales #6810301 | 1 |
| 10 | 66***09 | FORK 48 IN HB; 48" high back - one fork only | 2 |
| 10 | 66***08 | FORK 48 IN LB; 48" low back - one fork only | 2 |
| 10 | 66***76 | FORK; 60" low back - one fork only | 2 |
| 10 | 71***67 | FORK, BRICK BLOCK V/H; NLA - brick/block V/H - one fork only - Was 7141767 | 2 |
| 10 | 71***49 | FORK, BRICK BLOCK ITA; brick/block ITA - one fork only | 2 |
