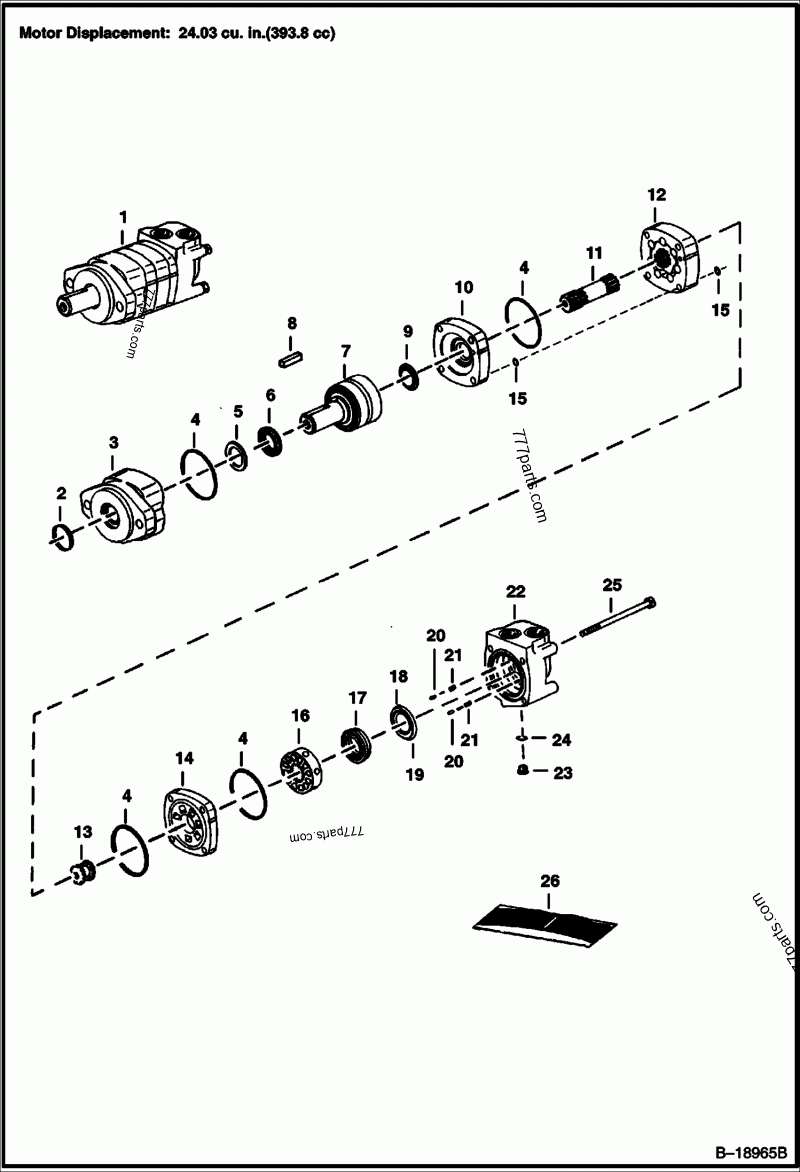

BOBCAT Landscape+Rake Landscape Rake (Hydrostatic Motor) (Eaton 104-1784-006) (B Series)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 66***28 | MOTOR ASSEMBLY; Ref. 2-25 - Was 6668686 | 1 |
| 2 | 66***29 | SEAL; shaft - 1.28" ID x 1.57" OD x .13" wide | 1 |
| 3 | 66***85 | HOUSING | 1 |
| 4 | ---- | O - RING; NSS | 4 |
| 5 | ---- | BACK-UP RING; NSS | 1 |
| 6 | ---- | SEAL; NSS - shaft | 1 |
| 7 | 66***90 | SHAFT ASSEMBLY | 1 |
| 8 | 66***92 | KEY | 1 |
| 9 | 19***98 | SEAL | 1 |
| 10 | 66***86 | PLATE, WEAR | 1 |
| 11 | 66***50 | DRIVE | 1 |
| 12 | 66***51 | GEROLER | 1 |
| 13 | 19***84 | DR VALVE | 1 |
| 14 | 66***68 | PLATE | 1 |
| 15 | ---- | O - RING; NSS | 3 |
| 16 | 66***88 | VALVE | 1 |
| 17 | 66***27 | PLATE | 1 |
| 18 | 19***00 | SEAL; inner | 1 |
| 19 | 66***00 | SEAL; NLA - Order Ref. 26 seal kit - Was 6653300 | 1 |
| 20 | 19***02 | PIN | 2 |
| 21 | 19***88 | SPRING | 2 |
| 22 | 66***48 | HOUSING | 1 |
| 23 | 19***04 | PLUG; W/Ref. 24 | 1 |
| 24 | ---- | O - RING; NSS | 1 |
| 25 | 66***51 | BOLT | 4 |
| 26 | 66***73 | KIT SEAL; W/Ref. 2, 4 - 6, 9, 15, 18, 19 & 24 | 1 |
