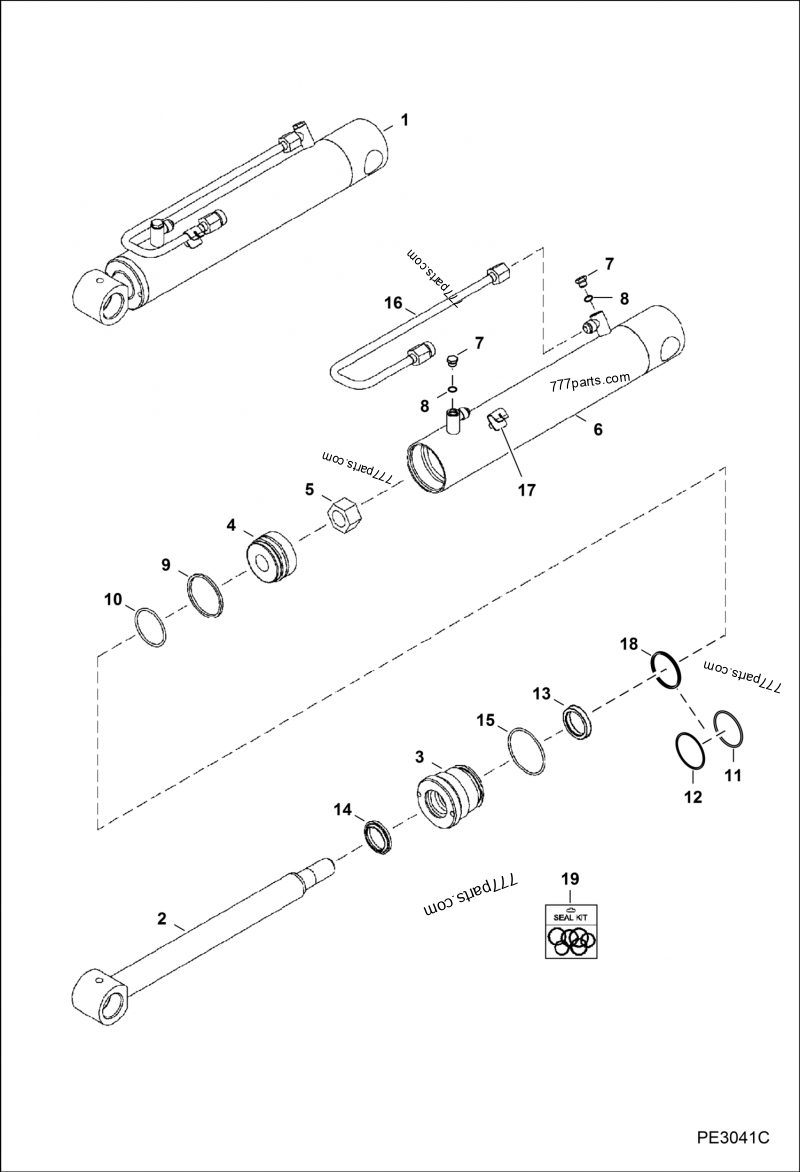

BOBCAT Grapple Industrial Grapple Fork (66") (78") (Cylinder) (S/N AF0U00101 & Above, AEDF00101 & Above)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 71***22 | CYLINDER ASSY, HYD; NLA - Ref. 2-17 - Order 7214249 kit & (2) of 7212595 cylinder - Was 7164022 | 1 |
| 2 | 71***76 | SHAFT CYLINDER | 1 |
| 3 | 65***82 | HEAD | 1 |
| 4 | 68***94 | PISTON; standard | 1 |
| 4 | ---- | PISTON; relief piston | 1 |
| 5 | 92*14 | NUT | 1 |
| 6 | 71***77 | TUBE, CYLINDER; NLA - Order 7214249 kit & (2) of 7212595 cylinder - Was 7164077 | 1 |
| 7 | 68***70 | PLUG | 2 |
| 8 | 75K3 | O-RING | 2 |
| 9 | 15***34 | SEAL | 1 |
| 10 | 54****02 | O-RING; Was 25K30202 | 1 |
| 11 | 54****08 | O-RING; Was 25K40208 | 1 |
| 12 | 73**28 | RING, BACK-UP | 1 |
| 13 | 66***84 | SEAL; Was 6667324 | 1 |
| 14 | 66***08 | WIPER ROD CYL | 1 |
| 15 | 82**30 | O-RING | 1 |
| 16 | 71***46 | TUBELINE | 1 |
| 17 | 66***10 | CLAMP | 1 |
| 18 | 70***78 | SEAL, QUAD; NLA - Order Ref. 11 & 12 - Was 7008778 | 1 |
| 19 | 71***66 | KIT SEAL; Ref. 5 & 9-15 | 1 |
