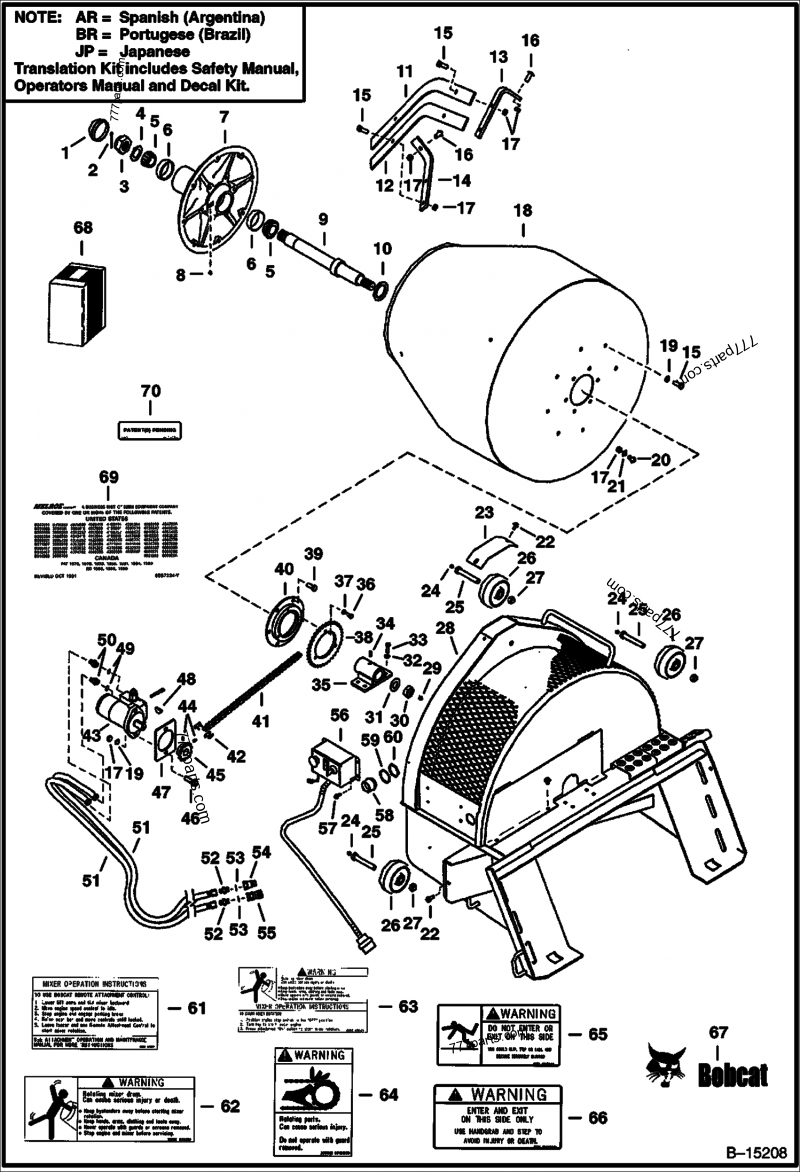

BOBCAT Concrete+Mixer Concrete Mixer (Assembly) (S/N 678500101 & Above, A01600101 & Above)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 66***74 | CAP; NLA - Was 6673774 | 1 |
| 2 | 1F*32 | PIN | 1 |
| 3 | 6D18 | NUT CASTL | 1 |
| 4 | 66***71 | WASHER | 1 |
| 5 | 66***75 | BEARING | 2 |
| 6 | 66***76 | RACE,BEAR | 2 |
| 7 | 66***77 | HUB | 1 |
| 8 | 16F2 | PLUG; pipe - Was 6673783 | 1 |
| 9 | 66***70 | SHAFT | 1 |
| 9 | 72***42 | SHAFT | 1 |
| 10 | 66***81 | SEAL | 1 |
| 11 | 66***65 | BLADE BTM; bottom | 2 |
| 12 | 66***66 | BLADE TOP; top | 2 |
| 13 | 66***67 | BRACE BCK; rear | 2 |
| 14 | 66***68 | BRACE FRT; front | 2 |
| 15 | 17**20 | BOLT 5 | 16 |
| 16 | 7C*20 | BOLT; carriage | 4 |
| 17 | 61D8 | NUT 5 | 16 |
| 18 | 66***78 | DRUM; NLA - Was 6673778 | 1 |
| 18 | 66***65 | DRUM | 1 |
| 19 | 4E8 | WASHER | 10 |
| 20 | 25**16 | BOLT | 2 |
| 21 | 25*21 | WASHER FLAT PLAIN | 2 |
| 22 | 84***12 | SCREW THD ROLLING TT | 3 |
| 23 | 66***63 | COVER | 1 |
| 24 | 10*35 | FTG GREASE STRAIGHT | 3 |
| 25 | 66***61 | BOLT ROLR | 3 |
| 26 | 66***79 | CASTOR WHEEL W/BRG | 3 |
| 27 | 59*10 | NUT | 3 |
| 28 | 66***87 | FRAME ASSEMBLY | 1 |
| 28 | 71***20 | FRAME | 1 |
| 29 | 10*25 | FTG GREASE STRAIGHT | 1 |
| 30 | 60*16 | NUT; Was 6673772 | 1 |
| 31 | 25*31 | WASHER | 1 |
| 32 | 55D6 | NUT | 4 |
| 33 | 17**20 | BOLT | 4 |
| 34 | 15**08 | SET SCREW; Was 6673773 | 1 |
| 35 | 71***13 | COLLAR, SHAFT; Was 6673786 | 1 |
| 36 | 17**12 | SCREW HEX CAP | 3 |
| 37 | 4E6 | WASHER | 3 |
| 38 | 66***62 | SPROCKET | 1 |
| 39 | 17**16 | BOLT | 6 |
| 40 | 66***64 | MOUNT | 1 |
| 41 | 66***85 | CHAIN; #50 - 98 links | 1 |
| 42 | 66***75 | CONNECTOR; connector - #50 | 1 |
| 43 | 66***84 | MOTOR ASSY; NLA - Order 6676584 motor - Was 6673784 | 1 |
| 43 | 66***84 | MOTOR HYD | 1 |
| 44 | 15**04 | SCREW SET | 2 |
| 45 | 66***80 | SPROCKET | 1 |
| 46 | 31**28 | BOLT | 2 |
| 47 | 66***69 | PLATE | 1 |
| 48 | 5J*08 | KEY | 1 |
| 49 | 79K8 | O-RING | 2 |
| 50 | 66***66 | ADAPTER; NLA - Was 6660066 | 2 |
| 51 | 66***82 | HOSE; NLA - Was 6673782 | 2 |
| 52 | 15****12 | FTG HYD S CONNECTOR; straight - Was 6673322 | 2 |
| 52 | 17****12 | FITTING, HYD ELBOW; 90 degree | 2 |
| 53 | 79*12 | O-RING | 2 |
| 54 | 72***77 | COUPLER, FF MALE; Was 6674688 | 1 |
| 54 | 72*****EF | COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE | 1 |
| 55 | 72***90 | COUPLER FF FEM 1/2; straight - Was 6672960 | 1 |
| 55 | 72*****EF | COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD | 1 |
| 56 | ---- | CONSOLE ASSY. | 1 |
| 57 | 61**12 | BOLT | 4 |
| 58 | 66***42 | RECEPTACLE | 1 |
| 59 | 66***71 | WASHER | 1 |
| 60 | 66***72 | NUT | 1 |
| 61 | 67***27 | DECAL; mixer operation instruction | 1 |
| 62 | 67***82 | DECAL; warning | 1 |
| 63 | 67***28 | DECAL; warning/operation instruction | 1 |
| 64 | 67***09 | DECAL; warning | 3 |
| 65 | 71***41 | DECAL EXIT; no-text | 1 |
| 65 | 67***91 | DECAL EXIT | 1 |
| 66 | 65***88 | DECAL WARNING; warning - enter/exit this side | 1 |
| 67 | 67***23 | DECAL, LOGO BOBCAT AND HEAD; NLA - Order 7109473 - Was 6727323 | 2 |
| 68 | 67*****AR | KIT, TRANSLATION; Translation - SEE NOTE | 1 |
| 68 | 67*****BR | KIT, TRANSLATION; Translation - SEE NOTE | 1 |
| 68 | 67*****AR | KIT, DECAL MIXER; Decal - SEE NOTE | 1 |
| 68 | 67*****BR | KIT, DECAL MIXER; Decal - SEE NOTE | 1 |
| 68 | 67*****JP | KIT, DECAL MIXER; Decal - SEE NOTE | 1 |
| 69 | 65***24 | DECAL; NLA - patent - Was 6557224 | 1 |
| 70 | 68***66 | DECAL PATENT PEND; NLA - Was 6810666 | 1 |
