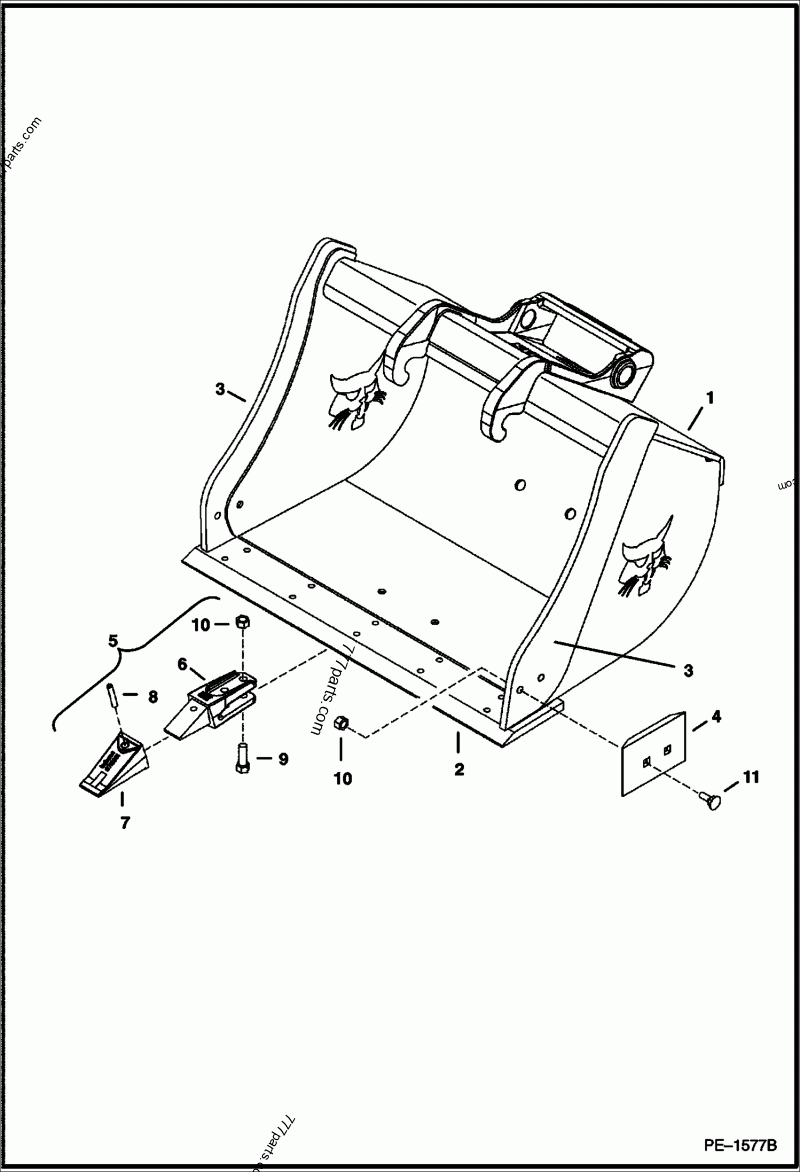

BOBCAT Backhoe Buckets (835S) (Cast X-Change Mounted)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 67***18 | BUCKET; SALES - 16" (406mm) - uses 4 teeth - SALES #6735418 | x |
| 1 | 67***22 | BUCKET; SALES - 18"(457mm) - uses 4 teeth - SALES #6735422 | x |
| 1 | 67***26 | BUCKET; SALES - 20" (508mm) - uses 4 teeth - SALES #6735426 | x |
| 1 | 67***29 | BUCKET; SALES - 24" (609mm) - uses 5 teeth - SALES #6735429 | x |
| 1 | 67***33 | BUCKET; SALES - 30" (762mm) - uses 5 teeth - SALES #6735433 | x |
| 1 | 67***37 | BUCKET; SALES - 36" (914mm) - uses 6 teeth - SALES #6735437 | x |
| 1 | 67***43 | BUCKET; SALES - 39" (990mm) - does not use teeth - SALES #6735443 | x |
| 1 | 67***14 | BUCKET; SALES - 13" (330mm) - uses 3 teeth - SALES #6735414 | x |
| 2 | 68***15 | EDGE CUTTING WELD ON BEVELED 39.25 IN; 39" (990mm) | 1 |
| 2 | 68***38 | EDGE CUTTING WELD ON BEVELED 36.25 IN; 36" (914mm) | 1 |
| 2 | 68***37 | EDGE CUTTING WELD ON 30.25 IN; 30" (762mm) | 1 |
| 2 | 68***36 | EDGE CUTTING WELD-ON 24 IN; 24" (609mm) | 1 |
| 2 | 68***35 | EDGE CUTTING WELD-ON BEVELED 18.25 IN; 18"(457mm) | 1 |
| 2 | 68***34 | EDGE CUTTING WELD ON BEVELED 16.25 IN; 16" (406mm) | 1 |
| 2 | 68***33 | EDGE CUTTING WELD ON BEVELED 13.25 IN; 13" (330mm) | 1 |
| 2 | 68***35 | EDGE CUTTING WELD ON BEVELED 20.25 IN; 20" (508mm) | 1 |
| 3 | 68***29 | EDGE CUTTING WELD-ON SIDE; 13"(330mm), 16"(406mm), 18"(457mm), 20"(508mm), 24"(609mm), 30"(762mm) & 36" | 1 |
| 3 | 68***71 | EDGE CUTTING WELD-ON SIDE; for 39" bucket | 2 |
| 4 | 68***64 | EDGE CUTTING BOLT-ON 4 IN | 2 |
| 5 | 71***30 | TOOTH BUCKET ASSEMBLY; W/Ref. 6-10 - Was 6684448 | x |
| 6 | 71*****SD | ADAPTER TOOTH BUCKET; bolt-on Was 7107324EF | x |
| 6 | 67***36 | SHANK; NLA - bolt-on - order Ref. 5 - Was 6715836 | x |
| 7 | 71***19 | TOOTH BUCKET; 114,3 mm (4.5") long - Was 6716001 | x |
| 7 | 71*****SD | TOOTH BUCKET; Was 7107319EF | x |
| 8 | 67*****SD | PIN FLEX BUCKET TOOTH; Was 6737326EF | x |
| 8 | 67***26 | PIN TOOTH BUCKET | x |
| 8 | 67*****SD | PIN FLEX BUCKET TOOTH | x |
| 8 | 14***32 | PIN, STRAIGHT 5 | x |
| 9 | 47**32 | BOLT; Qty. 2 per tooth-Was 47C000828B | x |
| 10 | 63D8 | NUT; Qty. 2 per tooth-Was 95D000008B | x |
| 11 | 39**28 | BOLT | 4 |
