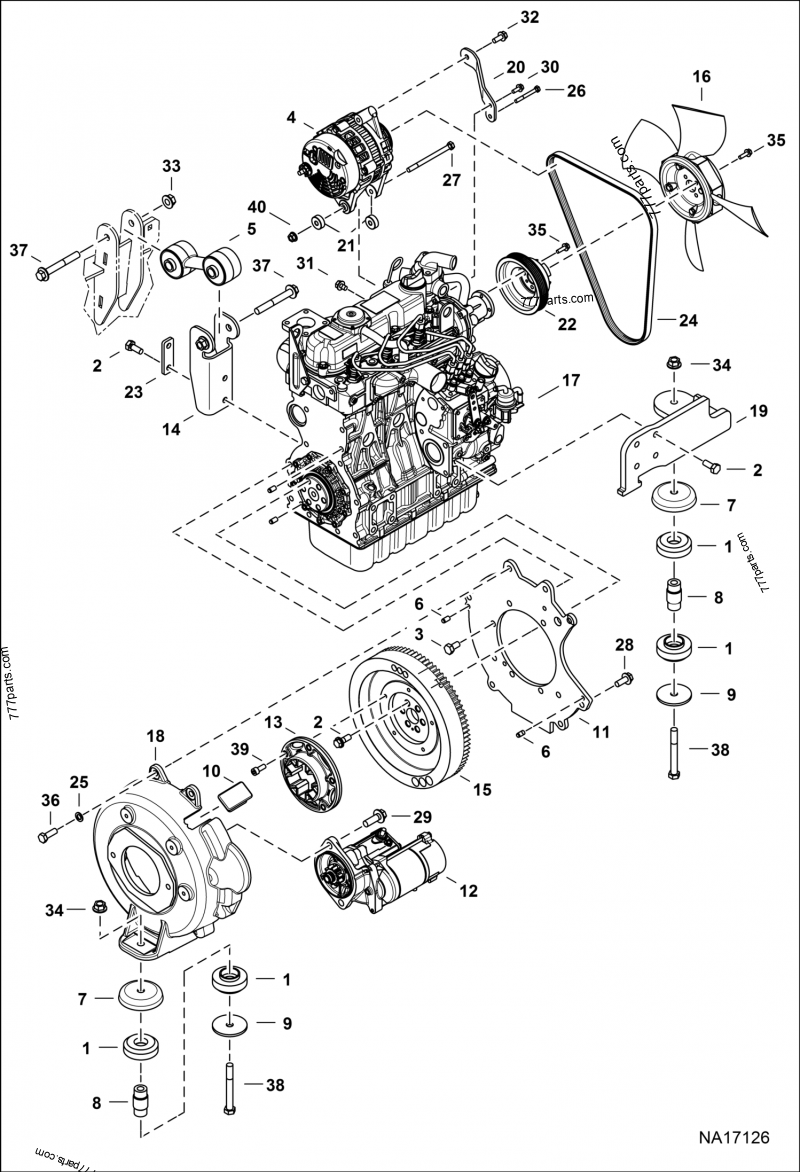

BOBCAT L23 Engine & Attaching Parts (Belt Drive & Mounts)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 66***94 | MOUNT | 4 |
| 2 | 67***25 | SCREW FLTHD HEX CAP | 6 |
| 3 | 67***78 | SCREW FL THD CAP | 7 |
| 4 | ---- | ALTERNATOR, 90 AMP | 1 |
| 5 | 70***24 | MOUNT, ENG | 1 |
| 6 | 71***41 | PIN | 2 |
| 7 | 71***51 | CUP | 2 |
| 8 | 71***61 | SPACER TUBE | 2 |
| 9 | 71***62 | WASHER | 2 |
| 10 | 71***19 | PLUG | 1 |
| 11 | 72***59 | PLATE, FLYWHEEL | 1 |
| 12 | ---- | STARTER | 1 |
| 12 | 72******EM | STARTER | 1 |
| 13 | 72***43 | COUPLER FLANGE | 1 |
| 14 | 73***00 | MOUNT STRUT | 1 |
| 15 | 73***30 | FLYWHEEL ASSEMBLY | 1 |
| 16 | 73***55 | FAN COOLING | 1 |
| 17 | ---- | ENGINE D1305 24.8 HP EPA T4 / EU STG V | 1 |
| 18 | 73***23 | HOUSING MACHINED | 1 |
| 19 | 73***07 | MOUNT ENGINE | 1 |
| 20 | 73***81 | BRACKET ALTERNATOR | 1 |
| 21 | 73***83 | SPACER ALTERNATOR | 1 |
| 22 | 73***96 | PULLEY FAN DRIVE | 1 |
| 23 | 73***76 | MOUNT STRUT | 1 |
| 24 | 73***86 | BELT DRIVE | 1 |
| 25 | 15***00 | WASHER | 2 |
| 26 | 1C**55 | SCREW | 1 |
| 27 | 1C***10 | SCREW HEX HD 8.8 | 1 |
| 28 | 29****25 | SCREW FLANGED HEAD CAP | 5 |
| 29 | 29****35 | BOLT | 2 |
| 30 | 29***16 | SCREW FLANGED HEAD CAP | 1 |
| 31 | 29***12 | BOLT | 1 |
| 32 | 29***20 | SCREW HEX FLANGE | 1 |
| 33 | 43**12 | NUT HEX FLNG 10.0 | 1 |
| 34 | 51**12 | NUT | 2 |
| 35 | 59***20 | SCREW | 8 |
| 36 | 5C***30 | SCREW FL THD HEX CAP | 2 |
| 37 | 60****90 | BOLT | 2 |
| 38 | 7C****00 | BOLT | 2 |
| 39 | 9G**25 | SCREW SKTHD CAP; Was 9GM820 | 5 |
| 40 | 53*M8 | NUT HX THDLK PREAPPL | 1 |
