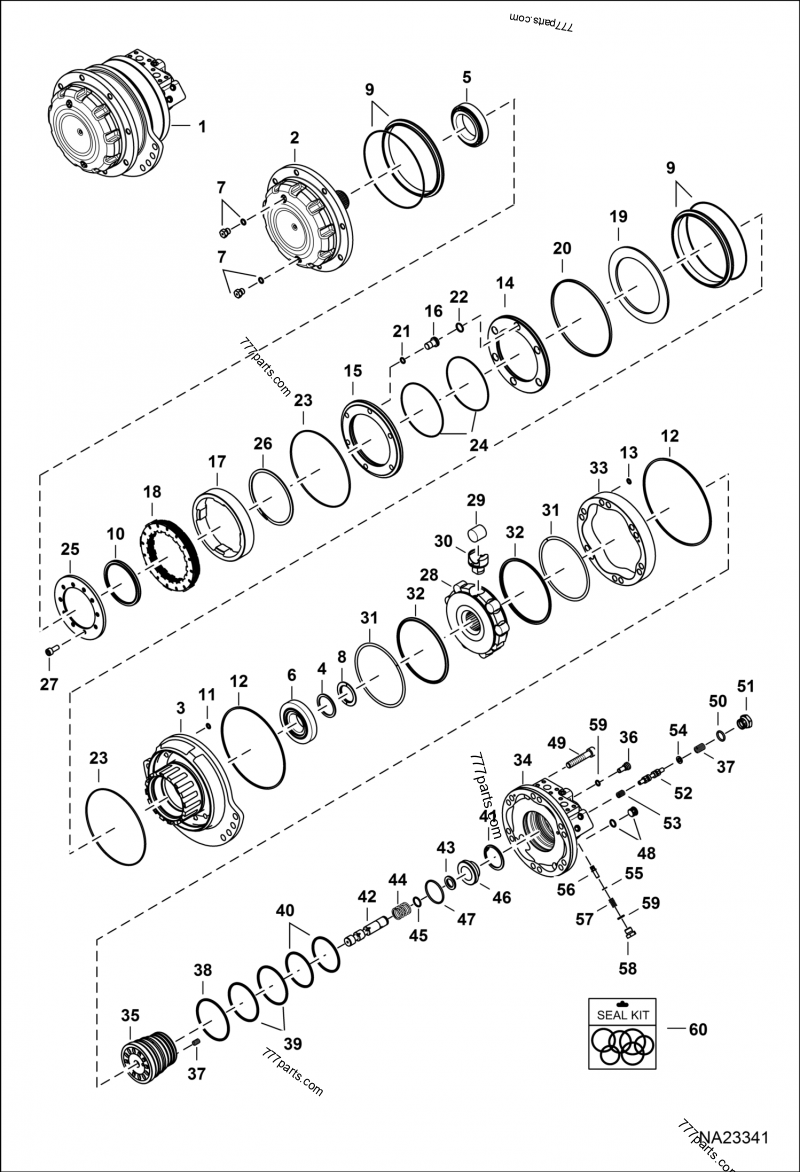

BOBCAT T770 Hydrostatic Motor & Brake (2 Speed) (R921813339)
(S/N A3P816881 & Above, A3P913625 & Above)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 74***32 | MOTOR DRIVE HYDR 2-SPEED; Ref. 2-60 - Model R921813339 | 1 |
| 2 | 73***36 | SHAFT FRONT | 1 |
| 3 | 73***17 | CASE FRONT | 1 |
| 4 | 66***08 | KIT WASHER | 1 |
| 5 | 73***38 | BEARING ROLLER | 1 |
| 6 | 66***18 | BEARING | 1 |
| 7 | 70***00 | PLUG; Was 7468079 | 2 |
| 8 | 66***10 | RING | 1 |
| 9 | 73***29 | SEAL RING | 1 |
| 10 | 73***04 | SEAL SHAFT | 1 |
| 11 | 69***09 | PLUG MOTOR | 4 |
| 12 | 70***82 | O-RING | 1 |
| 13 | 72***45 | O-RING | 1 |
| 14 | 73***39 | PISTON BRAKE | 1 |
| 15 | 73***43 | SEAL RING | 1 |
| 16 | 72***61 | PIN | 6 |
| 17 | 73***44 | SPACER ROUND | 1 |
| 18 | 73***45 | BRAKE PACK | 1 |
| 19 | 73***46 | DISC SPRING | 1 |
| 20 | 73***31 | SEAL SQUARE | 1 |
| 21 | 73***42 | O-RING | 6 |
| 22 | 72***48 | O-RING | 6 |
| 23 | 73***32 | O-RING | 2 |
| 24 | 73***33 | O-RING | 2 |
| 25 | 73***48 | RETAINER SEAL | 1 |
| 26 | 73***49 | CIRCLIP STEEL | 1 |
| 27 | 66***40 | SCREW | 10 |
| 28 | 72***76 | BLOCK CYLINDER | 1 |
| 29 | 70***04 | ROLLER | 8 |
| 30 | 70***72 | PISTON, MOTOR | 8 |
| 31 | 70***82 | RING, SNAP | 2 |
| 32 | 70***73 | RING, RETAINING | 2 |
| 33 | 73***18 | CAM ROTOR | 1 |
| 34 | 74***80 | CASE REAR | 1 |
| 35 | 73***21 | DISTRIBUTOR MOTOR | 1 |
| 36 | 66***40 | PIN | 1 |
| 37 | 66***21 | SPRING | 16 |
| 38 | 73***14 | SEAL RING | 1 |
| 39 | 73***07 | SEAL RING | 2 |
| 40 | 73***13 | SEAL RING | 2 |
| 41 | 73***22 | RING RETAINING | 1 |
| 42 | 73***24 | SPOOL MOTOR | 1 |
| 43 | 74***81 | WASHER RETAINING | 1 |
| 44 | 74***82 | SPRING SPOOL | 1 |
| 45 | 70***80 | RING, SNAP | 1 |
| 46 | 73***82 | CAP DIFFERENTIAL CASE | 1 |
| 47 | 73***16 | O-RING | 1 |
| 48 | 70***88 | PLUG | 1 |
| 49 | 73***83 | SCREW SOCKET HEAD | 12 |
| 50 | 66***93 | O-RING | 1 |
| 51 | 74***49 | PLUG MOTOR | 1 |
| 52 | 73***18 | SPOOL FLUSHING | 1 |
| 53 | 66***41 | SPRING | 1 |
| 54 | 66***67 | WASHER | 1 |
| 55 | 66***44 | SHIM | 1 |
| 56 | 66***45 | ORIFICE | 1 |
| 57 | 66***46 | SPRING | 1 |
| 58 | 66***47 | PLUG | 1 |
| 59 | 66***38 | O-RING | 2 |
| 60 | 73***03 | KIT SEAL; W/Ref. 9, 10, 12, 13, 20-24, 38-40, 47, 50, & 59 | 1 |
