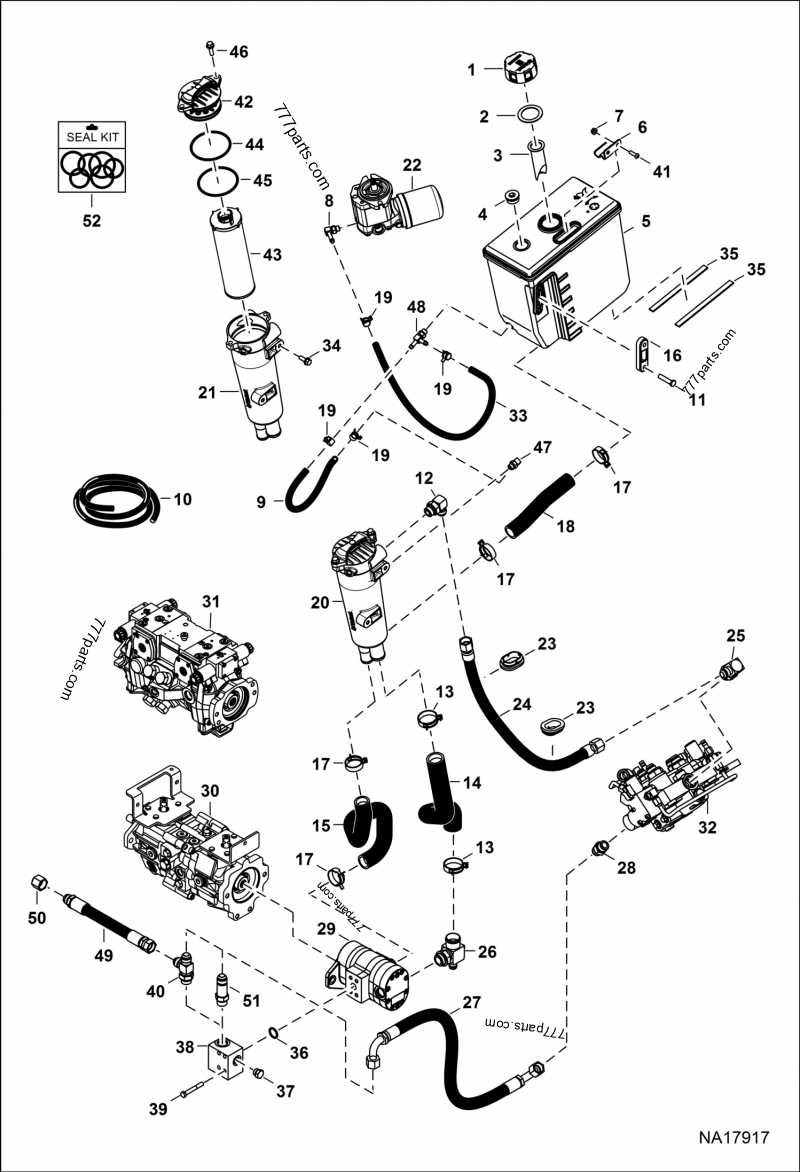

BOBCAT T650 Hydrostatic Circuitry (Tank & Filter)
(S/N ALJG32478 & Above)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 67***75 | CAP HYDRAULIC | 1 |
| 2 | 67***31 | GASKET CAP TANK HYDR | 1 |
| 3 | 70***87 | SCREEN | 1 |
| 4 | 47*10 | PLUG | 1 |
| 4 | 79*16 | O-RING | x |
| 5 | 71***19 | TANK HYDRAULIC | 1 |
| 6 | 71***06 | BRACKET | 1 |
| 7 | 57D5 | NUT HEX FLNG GR8 | 2 |
| 8 | 67***13 | FITTING, ELBOW | 1 |
| 8 | 79K6 | O RING 10 | x |
| 9 | ---- | HOSE; NLA - 330 mm (13") - Order Ref. 10 | 1 |
| 10 | 65***51 | HOSE BULK; sold per foot | x |
| 11 | ---- | BOLT; NSS - Order Ref. 16 | 2 |
| 12 | 17****12 | FITTING, HYD ELBOW | 1 |
| 12 | 79*12 | O-RING | x |
| 13 | 5H*47 | CLAMP | 2 |
| 14 | 74***55 | HOSE HYDRAULIC FORMED; Was 7252393 | 1 |
| 15 | 74***56 | HOSE HYDRAULIC FORMED; Was 7252394 | 1 |
| 16 | 70***21 | GAUGE SIGHT; W/Ref. 11 | 1 |
| 17 | 5H*42 | CLAMP HOSE | 4 |
| 18 | 74***57 | HOSE HYDRAULIC FORMED; Was 7252395 | 1 |
| 19 | 5H*16 | CLAMP | 4 |
| 20 | 73***17 | FILTER OIL HYDRAULIC ASSY; Ref. 21 & 42-46 | 1 |
| 21 | 72***72 | FILTER, OIL HYD; NLA - Canister Only - Order Ref. 20 - Was 7248872 | 1 |
| 22 | ---- | MOTOR, HYD COOLING FAN | 1 |
| 23 | 70***40 | GROMMET | 2 |
| 24 | 71***94 | HOSE | 1 |
| 25 | 71***71 | ELBOW | 1 |
| 25 | 79*16 | O-RING | x |
| 26 | 71***21 | FITTING | 1 |
| 26 | 79*16 | O-RING; Was 79K12 | x |
| 27 | 73***84 | HOSE HYDRAULIC ASSY | 1 |
| 28 | 79*12 | O-RING | x |
| 28 | 15****12 | FITTING, HYD CONNECTOR | 2 |
| 29 | ---- | PUMP, GEAR; standard flow hydraulics | 1 |
| 29 | ---- | PUMP, GEAR; high flow hydraulics | 1 |
| 30 | ---- | PUMP, HYD; manual, AHC, ACS | 1 |
| 31 | ---- | PUMP, HYD; SJC | 1 |
| 32 | ---- | VALVE, CONTROL; manual controls | 1 |
| 32 | ---- | VALVE, CONTROL; ACS, AHC & SJC | 1 |
| 33 | ---- | HOSE; NLA - 762 mm (30") - Order Ref. 10 | 1 |
| 34 | 35**16 | SCREW FLANGED HEAD CAP | 2 |
| 35 | 71***09 | PAD, WEAR | 2 |
| 36 | 55**14 | O-RING | 1 |
| 37 | 24K6 | PLUG HYDR ORING BOSS | 1 |
| 38 | 72***07 | MANIFOLD, OUTLET PUMP | 1 |
| 38 | ---- | VALVE, POWER BOB-TACH | 1 |
| 39 | 17**44 | BOLT | 4 |
| 40 | 21****12 | FITTING, HYD TEE | 1 |
| 40 | 79*12 | O-RING | x |
| 41 | 53**16 | SCREW TRX BTN HD CAP | 2 |
| 42 | 73***96 | CAP CANISTER HYDRAULIC; W/Ref. 44 & 45 - Also Order Ref. 43 | 1 |
| 43 | 74***82 | FILTER HYDRAULIC W/O-RINGS; Also Order Ref. 42 - Was 7349795 | 1 |
| 44 | ---- | O - RING; NSS - black - Order Ref. 52 | 1 |
| 45 | ---- | O - RING; NSS - blue - Order Ref. 52 | 1 |
| 46 | 70***29 | BOLT | 2 |
| 47 | 72***14 | FITTING | 1 |
| 48 | 72***93 | FITTING, HYD TEE | 1 |
| 49 | 71***32 | HOSE HYDRAULIC ASSY | 1 |
| 50 | 36K8 | CAP HYDRAULIC | 1 |
| 51 | 16****12 | FITTING, HYD CONNECTOR | 1 |
| 52 | 73***69 | KIT SEAL; W/Ref. 44 & 45 | 1 |
