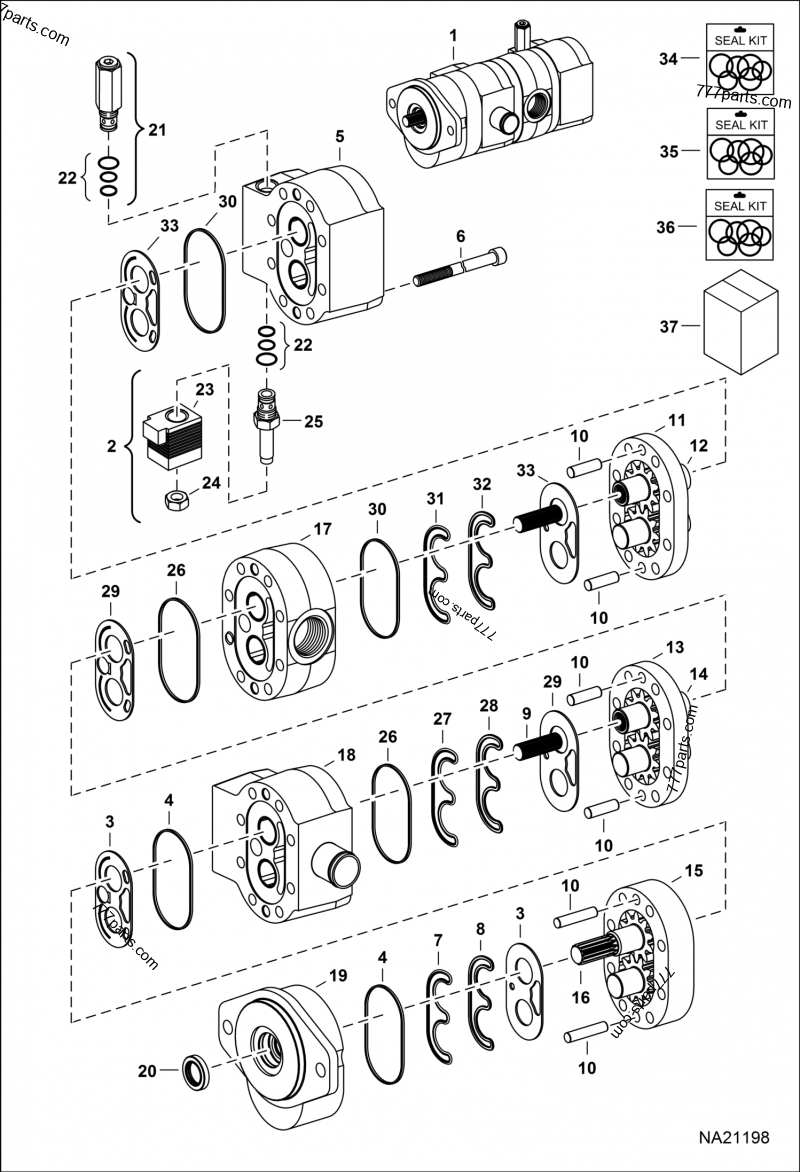

BOBCAT T590 High Flow Hydraulics (Gear Pump) (Model 83092970)
#Part No.DescriptionQty
174***90PUMP GEAR TRIPLE; Model 830929701
270***32VALVE, SOLENOID; Ref. 22-251
3----PLATE, WEAR; NSS - Order Ref. 342
4----SEAL, SECTION; NSS - Order Ref. 342
5----HOUSING, REAR; NSS - Order Ref. 11
6----BOLT; NSS - Order Ref. 378
7----SEAL, PRE-LOAD; NSS - Order Ref. 341
8----SEAL, LOAD; NSS - Order Ref. 341
9----CONNECTOR, SPLINE; NSS - Order Ref. 12
10----PIN; NSS - Order Ref. 16
11----HOUSING, GEAR; #3 - NSS - Order Ref. 11
12----GEAR SET; #3 - NSS - Order Ref. 11
13----HOUSING, GEAR; #2 - NSS - Order Ref. 11
14----GEAR SET; #2 - NSS - Order Ref. 11
15----HOUSING, GEAR; #1 - NSS - Order Ref. 11
16----GEAR SET; drive - NSS - Order Ref. 11
17----HOUSING, CENTER; NSS - Order Ref. 11
18----HOUSING, CENTER; NSS - Order Ref. 11
19----HOUSING, FRONT; NSS - Order Ref. 11
20----SEAL, OIL; NSS - Order Ref. 341
2166***14VALVE SOLENOID; W/Ref. 221
22----KIT, SEAL; NSS - Order Ref. 212
23----COIL; NLA - Order Ref. 21
24----NUT; NLA - Order Ref. 21
25----STEM; NSS - Order Ref. 21
26----SEAL, SECTION; NSS - Order Ref. 352
27----SEAL, PRE-LOAD; NSS - Order Ref. 351
28----SEAL, LOAD; NSS - Order Ref. 351
29----PLATE, WEAR; NSS - Order Ref. 352
30----SEAL, SECTION; NSS - Order Ref. 372
31----SEAL, PRE-LOAD; NSS - Order Ref. 371
32----SEAL, LOAD; NSS - Order Ref. 371
33----PLATE, WEAR; NSS - Order Ref. 372
3474***55KIT SEAL; Ref. 3, 4, 7, 8 & 201
3574***56KIT SEAL; Ref. 26-291
3674***57KIT SEAL; Ref. 30-331
3773***86KIT BOLT PUMP GEAR; includes (8) bolts1
