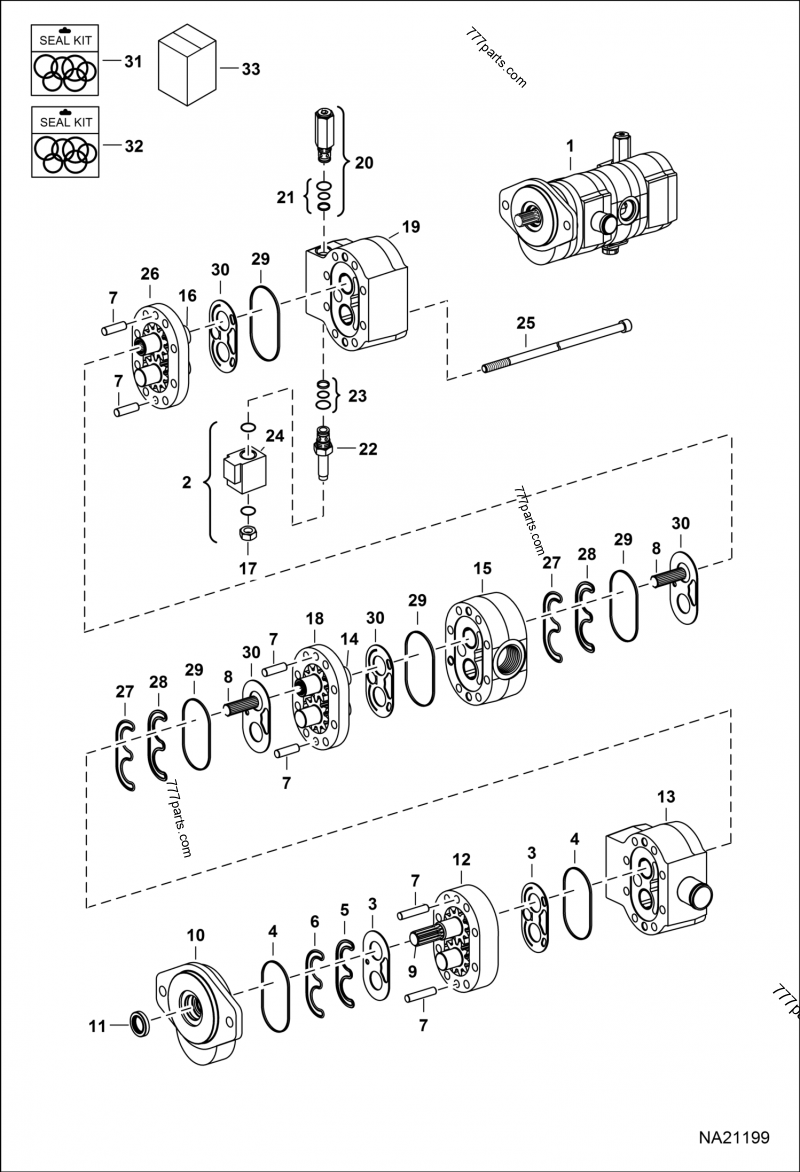

BOBCAT S850 High Flow Hydraulics (Gear Pump) (Model 83092990)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 74***91 | PUMP GEAR TRIPLE; Model 83092990 | 1 |
| 2 | 70***32 | VALVE, SOLENOID; Ref. 17 & 22-24 | 1 |
| 3 | ---- | PLATE, WEAR; NSS - Order Ref. 31 | 2 |
| 4 | ---- | SEAL, SECTION; NSS - Order Ref. 31 | 2 |
| 5 | ---- | SEAL, LOAD; NSS - Order Ref. 31 | 1 |
| 6 | ---- | SEAL, PRE-LOAD; NSS - Order Ref. 31 | 1 |
| 7 | ---- | PIN; NSS - Order Ref. 1 | 6 |
| 8 | ---- | CONNECTOR, SPLINE; NSS - Order Ref. 1 | 2 |
| 9 | ---- | GEAR SET; drive - NSS - Order Ref. 1 | 1 |
| 10 | ---- | HOUSING, FRONT; NSS - Order Ref. 1 | 1 |
| 11 | ---- | SEAL, OIL; NSS - Order Ref. 31 | 1 |
| 12 | ---- | HOUSING, GEAR; #1 - NSS - Order Ref. 1 | 1 |
| 13 | ---- | HOUSING, CENTER; NSS - Order Ref. 1 | 1 |
| 14 | ---- | GEAR SET; #1 - NSS - Order Ref. 1 | 1 |
| 15 | ---- | HOUSING, CENTER; NSS - Order Ref. 1 | 1 |
| 16 | ---- | GEAR SET; #2 - NSS - Order Ref. 1 | 1 |
| 17 | 66***04 | NUT | 1 |
| 18 | ---- | HOUSING, GEAR; #2 - NSS - Order Ref. 1 | 1 |
| 19 | ---- | HOUSING, REAR; NSS - Order Ref. 1 | 1 |
| 20 | 66***14 | VALVE SOLENOID | 1 |
| 21 | 66***06 | KIT SEAL | 1 |
| 22 | 70***30 | VALVE, SOLENOID | 2 |
| 23 | 70***49 | KIT SEAL | 1 |
| 24 | 70***29 | COIL | 1 |
| 25 | ---- | BOLT; NSS - Order Ref. 33 | 8 |
| 26 | ---- | HOUSING, GEAR; #3 - NSS - Order Ref. 1 | 1 |
| 27 | ---- | SEAL, PRE-LOAD; NSS - Order Ref. 32 | 2 |
| 28 | ---- | SEAL, LOAD; NSS - Order Ref. 32 | 2 |
| 29 | ---- | SEAL, SECTION; NSS - Order Ref. 32 | 4 |
| 30 | ---- | PLATE, WEAR; NSS - Order Ref. 32 | 4 |
| 31 | 74***55 | KIT SEAL; Ref. 3-6 & 11 | 1 |
| 32 | 74***56 | KIT SEAL; Ref. 27-30 | 2 |
| 33 | 73***87 | KIT BOLT PUMP GEAR; includes (8) bolts | 1 |
