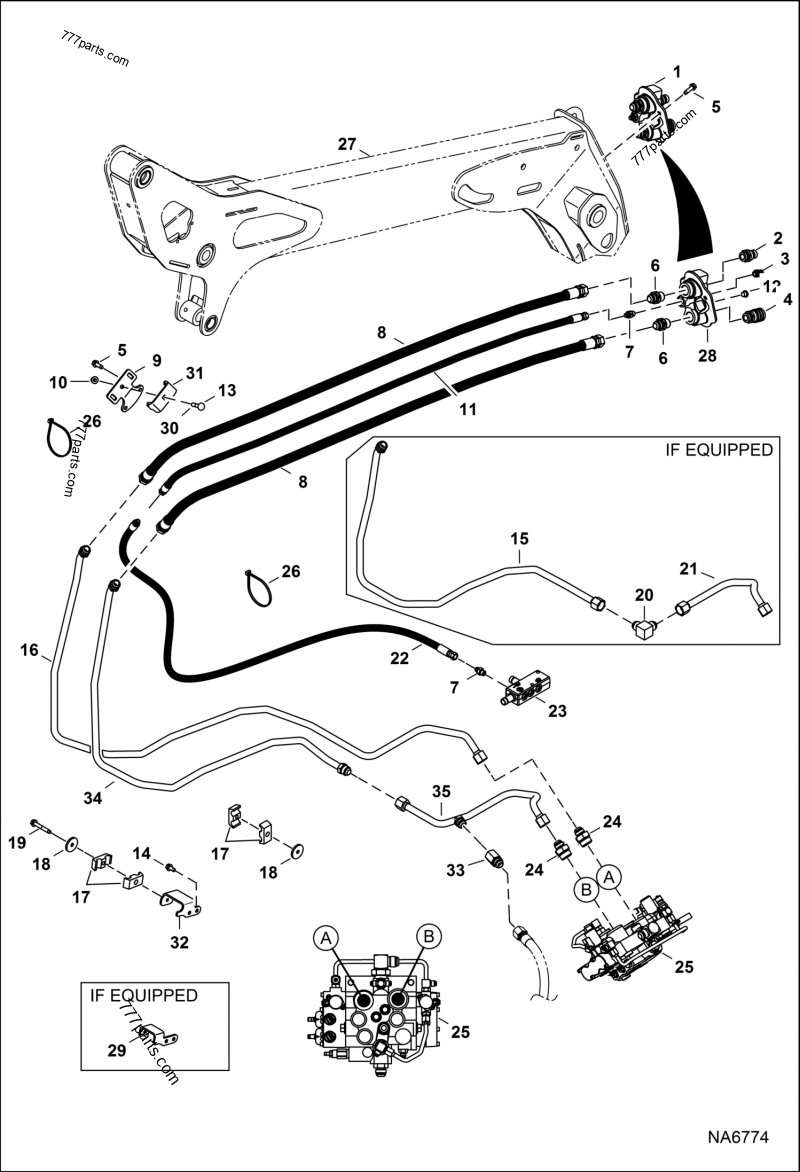

BOBCAT S590 Auxiliary Hydraulics
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | ---- | BLOCK, COUPLER ASSY; Ref. 2-4, 6, 7 & 28 - 7246784 (FFH/FH) or 7141939 (FFI/FI) | 1 |
| 2 | ---- | COUPLER, FF MALE; 7246799 (FFH/FH) or 6679837 (FFI/FI) | 1 |
| 2 | ---- | SEAL; blue - front - 7251807 or 6679841 | 1 |
| 2 | ---- | KIT, SEAL; (3) O-rings & (3) back-up washers - 6680020 | 1 |
| 3 | ---- | COUPLER, FF MALE; casedrain - W/valve, spring, seal & O-ring - 7246798 (FFH/FH) or 6679838 (FFI/FI) | 1 |
| 3 | ---- | SEAL; blue - front - 7251808 or 6679840 | 1 |
| 4 | ---- | COUPLER, FF FEMALE; 7246802 (FFH/FH) or 6680018 (FFI/FI) | 1 |
| 4 | ---- | KIT, SEAL; (3) O-rings & (3) back-up washers - 6680020 | 1 |
| 5 | 84***16 | SCREW THD ROLLING TT | 3 |
| 6 | ---- | FITTING, HYD CONNECTOR; W/spring - 7246801 or 6679836 | 2 |
| 6 | 79*12 | O-RING | x |
| 7 | 15****06 | FITTING, HYD CONNECTOR | 1 |
| 7 | 79K6 | O RING 10 | x |
| 8 | 71***09 | HOSE HYDRAULIC ASSY | 2 |
| 8 | 72***96 | HOSE HYDRAULIC ASSY | 2 |
| 9 | 71***14 | CLAMP, HOSE | 1 |
| 10 | 53D6 | NUT; Was 89D6 | 1 |
| 11 | 71***10 | HOSE HYDRAULIC ASSY | 1 |
| 12 | 66***42 | PLUG, NYLON | 1 |
| 13 | 37**32 | BOLT SQ NECK RD HD; Was 17C644 | 2 |
| 14 | 84***12 | SCREW THD ROLLING TT | 2 |
| 15 | 72***32 | TUBELINE, HYD | 1 |
| 15 | 72***23 | TUBELINE HYDRAULIC; Was 7268424 | 1 |
| 15 | 72***93 | TUBELINE, HYD | 1 |
| 16 | 72***33 | TUBELINE, HYD | 1 |
| 16 | 72***25 | TUBELINE, HYD ASSY | 1 |
| 16 | 72***24 | TUBELINE HYDRAULIC; Was 7268423 | 1 |
| 17 | 65***06 | CLAMP | 6 |
| 18 | 87**29 | WASHER | 3 |
| 19 | 84***40 | BOLT | 1 |
| 20 | 77F8 | ELBOW | 1 |
| 21 | 72***67 | TUBELINE, HYD; Was 7181452 | 1 |
| 22 | 71***70 | HOSE HYDRAULIC ASSY | 1 |
| 23 | ---- | MANIFOLD, CASE DRAIN | 1 |
| 24 | 15****16 | FITTING, HYD CONNECTOR | 2 |
| 24 | 79*16 | O-RING | x |
| 25 | ---- | VALVE; manual controls | 1 |
| 25 | ---- | VALVE; ACS, AHC, SJC | 1 |
| 26 | 66***89 | STRAP, TIE | 7 |
| 27 | ---- | ARM, LIFT ASSY | 1 |
| 28 | ---- | BLOCK; NSS - Order Ref. 1 | 1 |
| 29 | 71***38 | MOUNT, BULKHEAD; if equipped - use with tubelines 7211932 & 7211933, or 7268423 & 7268424 | 1 |
| 30 | 71***72 | SPACER, TUBE | 1 |
| 31 | 71***15 | CLAMP, HOSE | 1 |
| 32 | 72***87 | MOUNT; use with tubelines 7280293 & 7274025 | 1 |
| 33 | ---- | VALVE, CHECK; Use W/Ref 35 (7300368 tubeline, hyd) - if equipped | 1 |
| 34 | 72***10 | TUBELINE, HYD | 1 |
| 35 | 72***08 | TUBELINE, HYD; std flow | 1 |
| 35 | 73***68 | TUBELINE, HYD; high flow - Use W/Ref 33 - if equipped | 1 |
