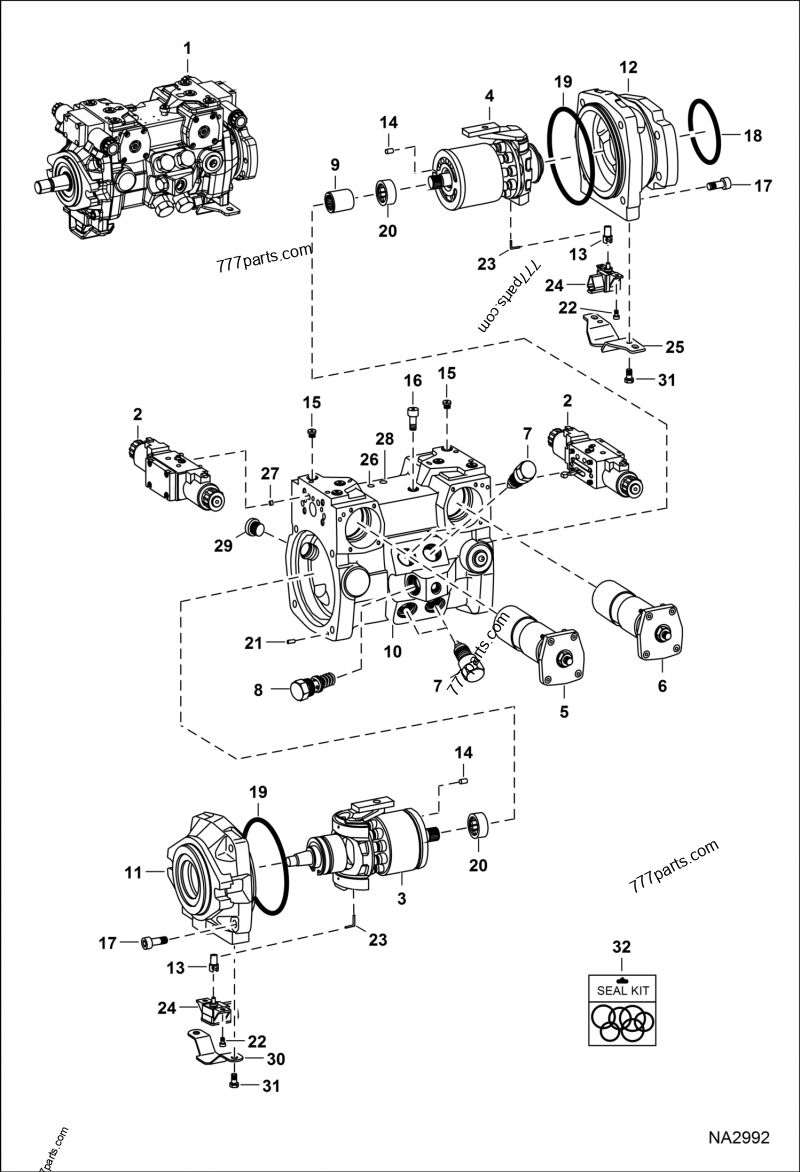

BOBCAT S570 Hydrostatic Pump (Selectable Joystick Controls) (R902136745)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 71******EM | PUMP HYDRAULIC TANDEM | 1 |
| 1 | 71***97 | PUMP, HYD TANDEM; NLA - Model R902136745 - Ref. 2-31 - Order 7023794 - Was 7170197 | 1 |
| 1 | 70******EM | PUMP HYDR TANDEM W/O GEAR PUMP | 1 |
| 1 | 70***94 | PUMP HYDR TANDEM W/O GEAR PUMP; Model R902202746 | 1 |
| 2 | 70***09 | MODULE, CONTROL | 2 |
| 3 | ---- | GROUP, ROTATING LH; LH rotation | 1 |
| 4 | ---- | GROUP ROTATING RH; RH rotation | 1 |
| 5 | ---- | CONTROL; LH - assy | 1 |
| 6 | ---- | CONTROL; RH - assy | 1 |
| 7 | 70***39 | HIGH PRESSURE RELIEF VALVE; preset at 350 bar | 4 |
| 8 | ---- | VALVE; charge pressure relief 15-30 bar | 1 |
| 9 | 66***41 | COUPLER | 1 |
| 10 | 70***10 | HOUSING; W/Ref. 16 | 1 |
| 11 | 70***11 | FLANGE, LH | 1 |
| 12 | 70***12 | FLANGE, RH | 1 |
| 13 | 72***38 | SHAFT; Was 7008113 | 2 |
| 14 | 66***11 | PIN | 2 |
| 15 | 66***75 | PLUG; Was 6688016 | 11 |
| 16 | 66***92 | SCREW | 3 |
| 17 | 66***08 | SCREW | 8 |
| 18 | 66***20 | O-RING | 1 |
| 19 | 66***09 | SEAL | 2 |
| 20 | 66***40 | BEARING | 2 |
| 21 | 66***34 | PIN | 2 |
| 22 | 70***14 | SCREW | 4 |
| 23 | 70***02 | WIRE; Was 6688014 | 2 |
| 24 | 73***23 | O-RING | 2 |
| 24 | 70***15 | SENSOR; triangle connector | 2 |
| 25 | 70***27 | COVER | 1 |
| 26 | 66***32 | PIN | 2 |
| 27 | 70***16 | FILTER | 6 |
| 28 | 66***15 | SCREW | 1 |
| 29 | 66***90 | SCREW | 1 |
| 30 | 70***27 | COVER | 1 |
| 31 | 66***03 | SCREW | 4 |
| 32 | 70***50 | KIT SEAL | 1 |
