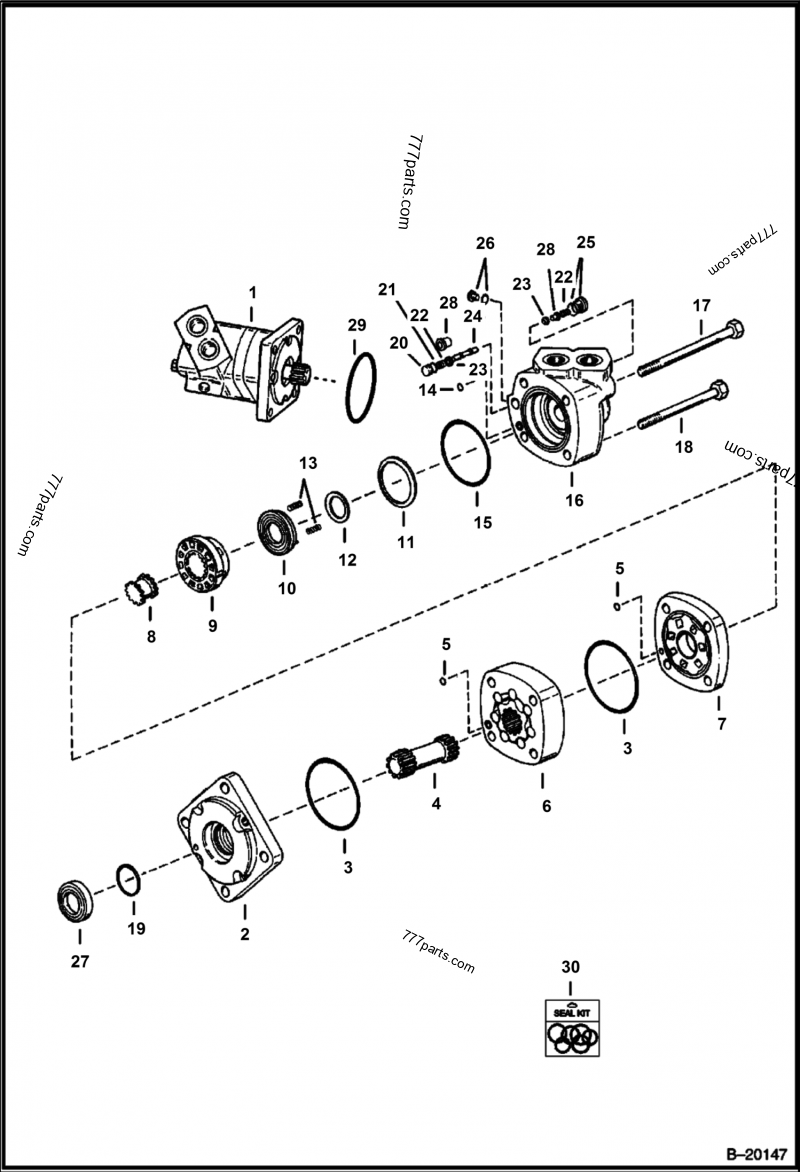

BOBCAT 853 Hydrostatic Motor
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 67***29 | KIT, MOTOR DRIVE; KIT - Ref. 27 & 29 (114-1064-005) | 1 |
| 1 | 67***86 | MOTOR; NLA - kit - Ref. 2-29 (114-1019-005) & (114-1059-005)-Order 6722529 Motor & 6705733 Tube - Was 6720886 | 1 |
| 1 | 67******EM | KIT, MOTOR DRIVE; NLA - WAS 6722529REM | 1 |
| 2 | 65***28 | MOUNT; mounting | 1 |
| 3 | 65***24 | SEAL,O-RING | 2 |
| 4 | 66***58 | DRIVE | 1 |
| 5 | 66***72 | O-RING | 2 |
| 6 | 66***61 | GEROLER | 1 |
| 7 | 66***09 | VALVE, PLATE; valve - Was 6658759 | 1 |
| 8 | 65***18 | SPROCKET; valve | 1 |
| 9 | 65***19 | VALVE | 1 |
| 10 | 66***57 | PLATE; balance assy. | 1 |
| 11 | 65***20 | SEAL | 1 |
| 12 | 65***29 | SEAL; face - Inner | 1 |
| 13 | 61***21 | SPRING | 3 |
| 14 | 25****10 | O-RING | 1 |
| 15 | 58*44 | O-RING | 1 |
| 16 | 66***55 | HOUSING; NLA - valve - for 114-1019-005 & 114-1059-005 motors - Was 6660455 | 1 |
| 16 | 66***37 | HOUSING; valve - for 114-1064-005 motor | 1 |
| 17 | 66***55 | BOLT | 2 |
| 18 | 66***54 | BOLT | 2 |
| 19 | 65***99 | O-RING | 1 |
| 20 | 65***39 | PLUG | 1 |
| 21 | 65***00 | O-RING | 1 |
| 22 | 65***33 | SPRING | 2 |
| 23 | 65***32 | POPPET | 2 |
| 24 | 65***10 | PISTON | 1 |
| 25 | 47K5 | PLUG | 1 |
| 26 | 47K2 | PLUG | 1 |
| 27 | 65***81 | BUSHING; bronze | 1 |
| 28 | 65***18 | SLEEVE | 2 |
| 29 | 25****08 | O-RING; NOT PART OF SEAL KIT | 1 |
| 30 | 66***56 | KIT SEAL; Ref. 3, 5, 11, 12, 14, 15 & 21 - Was 6514893 | 1 |
