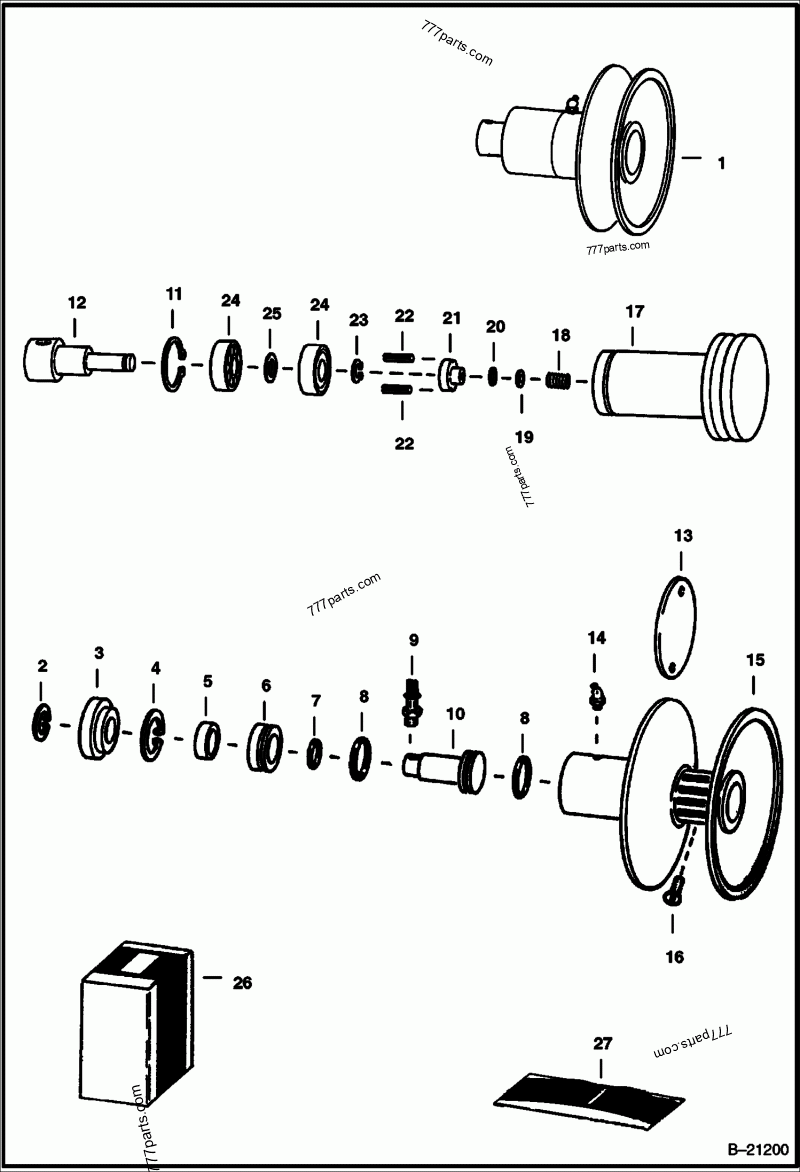

BOBCAT 500 Variable Speed Drive Sheave
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 65***45 | SHEAVEKIT; 444 | 1 |
| 1 | 65***46 | SHEAVEKIT; 500 | 1 |
| 2 | 65***71 | RING, SNAP | 1 |
| 3 | 65***28 | CAP; NLA - Was 6504428 | 1 |
| 4 | 65**24 | RING | 1 |
| 5 | 65***86 | SEAL; wiper | 1 |
| 6 | 65***27 | PISTON; cylinder | 1 |
| 7 | 58**16 | O-RING | 1 |
| 8 | 58**25 | O-RING | 2 |
| 9 | 65***41 | HOSE ASSEMBLY | 1 |
| 10 | 65***80 | PISTON, UNION; Ref. 11, 12 & 17 - 25 | 1 |
| 11 | 13***52 | RETAINR | 1 |
| 12 | 65***04 | ROTOR | 1 |
| 13 | 65***39 | PLATE, COVER | 1 |
| 14 | 11*25 | FITTING10 | 1 |
| 15 | 65***40 | SHEAVE; Use W/6554946 - for 500 - NLA - Was 6554940 | 1 |
| 15 | 65***41 | SHEAVE; Use W/6554945 - for 444 & 500 diesel | 1 |
| 16 | 15**06 | SCREW | 2 |
| 17 | 65***03 | SHAFT; NLA - Was 6516303 | 1 |
| 18 | 65***02 | SPRING | 1 |
| 19 | 88**70 | SPACER; seal | 1 |
| 20 | 25****05 | O-RING | 1 |
| 21 | 65***01 | SEAL; floating | 1 |
| 22 | 30**23 | ROLL PIN; key | 2 |
| 23 | 13***70 | RING, SNAP | 1 |
| 24 | 65***12 | BEARING | 2 |
| 25 | 89**64 | SHIM | 1 |
| 26 | 65***80 | KIT SHEAVE; rebuilding - Ref. 11, 12, 18-21 & 23-25 | 1 |
| 27 | 66***41 | KIT SEAL; Ref. 5, 7, 8 - Was 6561717 | 1 |
