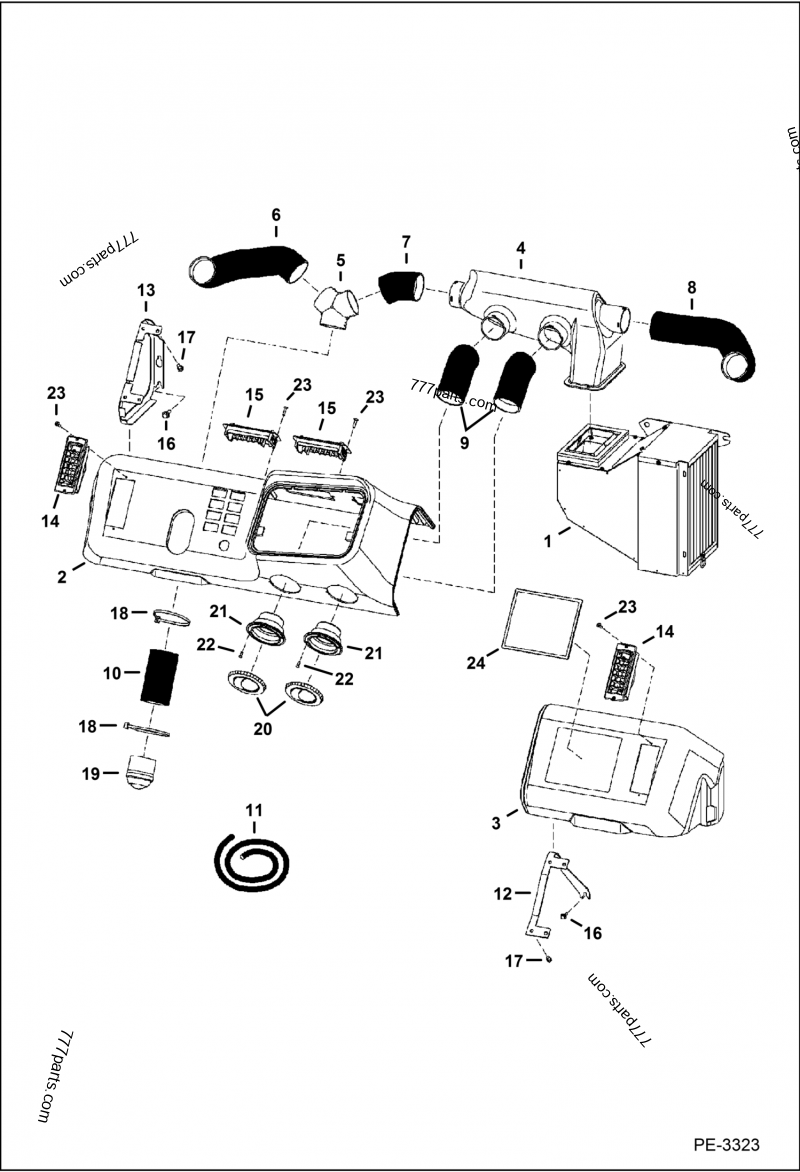

BOBCAT 5600 Heater & A/C (Dash)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | ---- | HVAC, ASSY | 1 |
| 2 | 71***32 | DASH; L.H. | 1 |
| 3 | 71***58 | COVER; R.H. | 1 |
| 4 | 71***98 | DISTRIBUTOR HVAC; HVAC | 1 |
| 5 | 71***29 | DISTRIBUTOR HVAC; HVAC | 1 |
| 6 | 71***28 | HOSE FLEX; NLA - 13.5 in. (343 mm) long - Order Ref. 11 - Was 7139528 | 1 |
| 7 | 71***26 | HOSE FLEX; NLA - 4 in. (102 mm) long - Order Ref. 11 - Was 7139526 | 1 |
| 8 | 71***13 | HOSE FLEX; NLA - 17 in. (432 mm) long- Order Ref. 11 - Was 7132513 | 1 |
| 9 | 71***24 | FLEX HOSE | 2 |
| 10 | 71***27 | HOSE FLEX; NLA - 5 in. (127 mm) long - Order Ref. 11 - Was 7139527 | 1 |
| 11 | 66***63 | HOSE ,BULK; bulk - sold per foot | x |
| 12 | 71***73 | BRACKET; dash R.H. | 2 |
| 13 | 68***87 | BRACKET DASH; dash L.H. | 2 |
| 14 | 66***53 | LOUVER | 2 |
| 15 | 72***37 | LOUVER; Was 6676713 | 2 |
| 16 | 26****20 | SCREW | 6 |
| 17 | 4C**12 | BOLT; Was 1CM612 | 10 |
| 18 | 66***89 | STRAP, TIE | 2 |
| 19 | 71***30 | VENT | 1 |
| 20 | 66***31 | VENT, HEATER CAB ROUND | 2 |
| 21 | 66***99 | ADAPTER | 2 |
| 22 | 68***24 | SCREW | 8 |
| 23 | 66***43 | SCREW | 8 |
| 24 | 71***06 | PANEL | 1 |
| 24 | 71***07 | CLIP | 4 |
